83W USB-C PD Laptop Charging Socket 12V

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

Overview

83W USB socket: 65W USB-C PD + QC 3.0

Charge a laptop and a phone at the same time from your vehicle battery. The USB-C Power Delivery port delivers up to 65 W, enough for most laptops including MacBook Air and 13″ MacBook Pro, iPads, Nintendo Switch and cameras, while the Quick Charge 3.0 USB-A port fast charges your phone at up to 18 W. Fits a standard 29.2 mm hole in the dash, console, battery box or caravan wall.

83 Watts

Total Output

65 Watts

USB-C PD

18 Watts

QC 3.0 USB-A

12V / 24V

Input Voltage

2 Years

Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU

1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)

Total 15.5 W

Input 12–24V DC

Best for Everyday phone and GPS charging in older vehicles, caravans and boats

TVDSU2

2 x USB-A QC 3.0 (18 W each)

Total 36 W

Input 8–32V DC

Best for Fast-charging two phones while keeping an eye on battery voltage

TVDSU3

1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)

Total 36 W on 12V, 45 W on 24V

Input 12–24V DC

Best for Charging a USB-A and a USB-C phone, both fast

TVDSU4

2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)

Input 12–24V DC (32V max)

Best for Families: three devices at once, two on fast USB-C

TVDSU5 THIS SOCKET

1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)

Total 83 W

Input 12–24V DC

Best for Charging a laptop or tablet on the road (65 W USB-C)

TVDSU6

1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)

Total 136 W

Input 12V / 24V DC (32V max)

Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)

83W USB Socket: 65W USB-C PD + 18W QC 3.0 USB-A, 12V / 24V Flush Mount

Ports and charging

Port	Output	Max Power
USB-C PD	5V / 3A 9V / 3A 12V / 3A 15V / 3A 20V / 3.25A	65 W
USB-A QC 3.0	5V / 3A 9V / 2A 12V / 1.5A	18 W
Both together		83 W max

Each device negotiates the voltage it needs, from 5V for older gadgets up to 20V for a laptop, so one socket safely charges everything you carry.

83W socket face with 65W USB-C PD and QC 3.0 USB-A ports

Protected supply

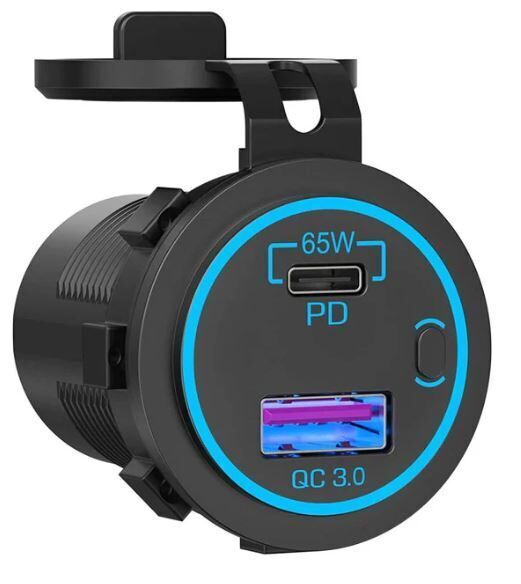

83W USB-C PD and QC 3.0 socket with hinged cap

✓Voltage limit range 9–31V: the socket works across the full swing of a 12V or 24V system, from a flat battery to a charging alternator
✓Low contact resistance (under 100 mΩ): less heat at the plug, more power to the device
✓Firm plug grip: plugs need up to 1,500 gf to pull out, so cables stay put on corrugations
✓Salt spray tested and impact rated to 8 kgf: made for boats, beaches and rough tracks
✓Rated -25°C to +85°C, with a hinged weather cap over the ports

Fitting

✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
✓Space behind the panel: allow about 53 mm for the body and terminals, plus room for the wires
✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
✓Suggested fuse: 10A on the positive feed
✓Terminals: 6.3 mm spade terminals, 10 mm apart

For best laptop charging, use a USB-C to USB-C cable rated for at least 3A (60 W). Most cables that come with laptops are.

TVDSU5 size diagram: 34 mm face, 43 mm body length, 30 mm panel hole
