3-Port USB-C PD 45W Socket 12V/24V

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

Overview

3-port USB socket: 45W USB-C PD + QC 3.0

Three fast-charging ports in one standard-size socket: two USB-C Power Delivery ports with up to 45 W, and a Quick Charge 3.0 USB-A port with up to 36 W. Enough to fast charge phones, run a tablet and top up a small USB-C laptop, from any 12V or 24V system. It fits the same 29.2 mm hole as a standard USB socket and works down to -40°C.

45 Watts

USB-C PD Max

36 Watts

QC 3.0 USB-A Max

3 Ports

2 x USB-C + 1 x USB-A

12V / 24V

Input Voltage

2 Years

Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU

1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)

Total 15.5 W

Input 12–24V DC

Best for Everyday phone and GPS charging in older vehicles, caravans and boats

TVDSU2

2 x USB-A QC 3.0 (18 W each)

Total 36 W

Input 8–32V DC

Best for Fast-charging two phones while keeping an eye on battery voltage

TVDSU3

1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)

Total 36 W on 12V, 45 W on 24V

Input 12–24V DC

Best for Charging a USB-A and a USB-C phone, both fast

TVDSU4 THIS SOCKET

2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)

Input 12–24V DC (32V max)

Best for Families: three devices at once, two on fast USB-C

TVDSU5

1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)

Total 83 W

Input 12–24V DC

Best for Charging a laptop or tablet on the road (65 W USB-C)

TVDSU6

1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)

Total 136 W

Input 12V / 24V DC (32V max)

Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)

3-Port USB Socket: 2 x USB-C PD 45W + QC 3.0 USB-A 36W, 12V / 24V Flush Mount

Ports and charging

Port	Output	Max Power
USB-C PD	5V / 3A 9V / 3A 12V / 3A 15V / 3A 20V / 2.2A	45 W
USB-A QC 3.0	5V / 3A 9V / 3A 12V / 3A	36 W

At 45 W the USB-C output charges an iPad Pro, a Nintendo Switch, most phones at full speed, and many small USB-C laptops and ultrabooks. Each device negotiates its own voltage, from 5V up to 20V, so it is safe for older USB devices too.

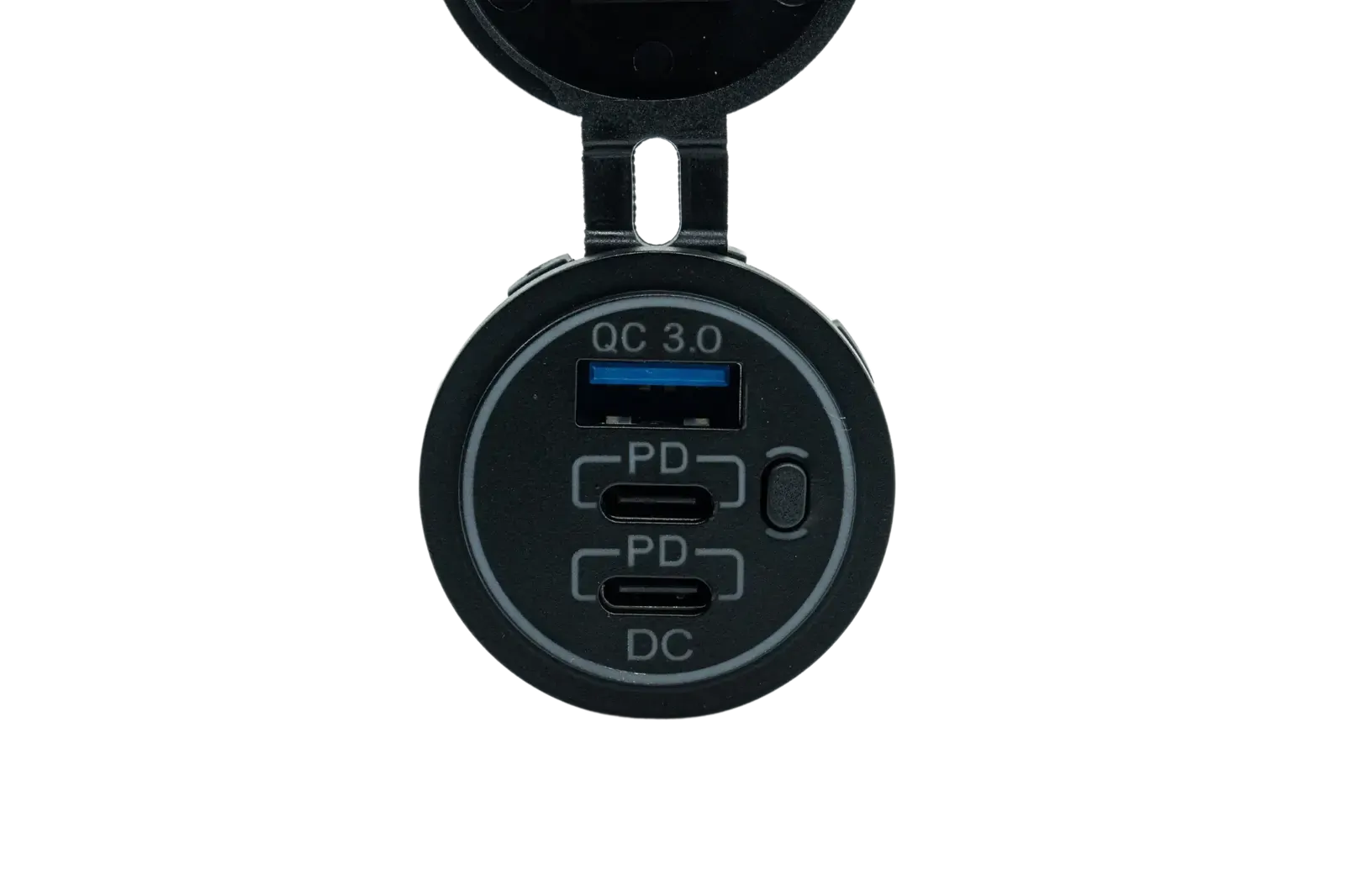

3-port USB socket face: QC 3.0 USB-A and two USB-C PD ports

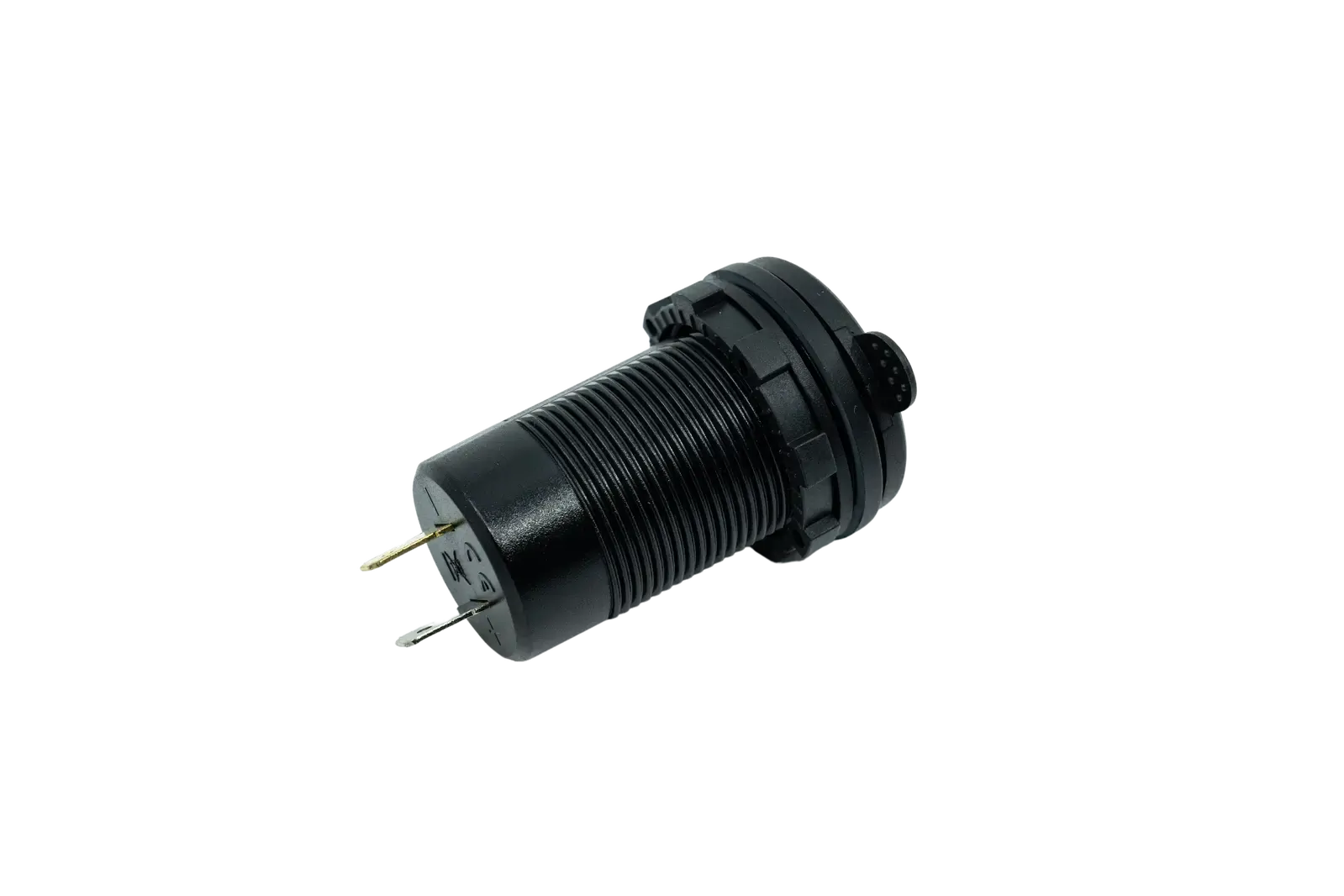

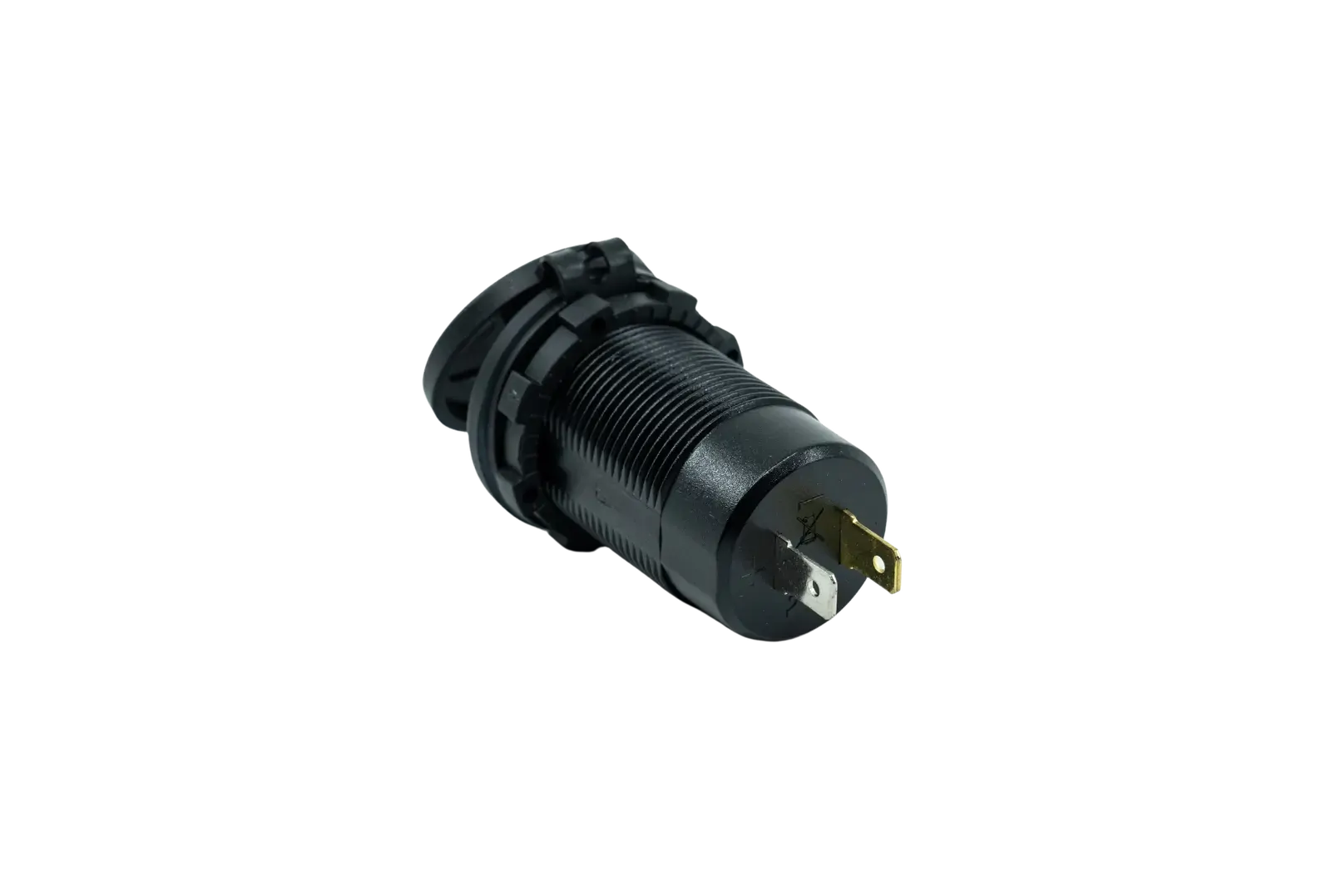

Side view of the 3-port USB socket with retaining nut

A single USB-C port delivers up to 45 W. When both USB-C ports are in use, the power is shared between them.

Built for the cold and the heat

✓Working temperature -40°C to +60°C: keeps charging on frosty alpine mornings and in hot canopies
✓Input up to 32V: handles the charging voltage of 24V trucks and buses
✓Hinged weather cap: keeps dust and water out of the ports when not in use

Fitting

✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
✓Space behind the panel: allow about 62 mm for the body and terminals, plus room for the wires
✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
✓Suggested fuse: 10A on the positive feed
✓Terminals: push-on spade terminals marked + and −

TVDSU4 size diagram: 37 mm face, 52 mm body length, 30 mm panel hole

Year
Warranty

Why buy from Perception Lighting12 Volt DirectSPC Enterprises

Australian business since 2007

Sydney store, shipping Australia-wide

Real people, here in Australia

Not an overseas call centre

2-year warranty

Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.

Browse All Sockets Browse All Sockets Browse All Sockets

Features

✓2 x USB-C Power Delivery ports, up to 45 W (20V / 2.2A)
✓1 x Quick Charge 3.0 USB-A port, up to 36 W (12V / 3A)
✓USB-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.2A
✓Input 12–24V DC, up to 32V max
✓Works from -40°C to +60°C
✓Hinged weather cap
✓Fits a standard 29.2 mm hole, flush mount with threaded nut
✓2-year warranty

Product Details

SKU	TVDSU4
Barcode #	9359968001811
Brand	12 Volt Direct
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.000288000m3
