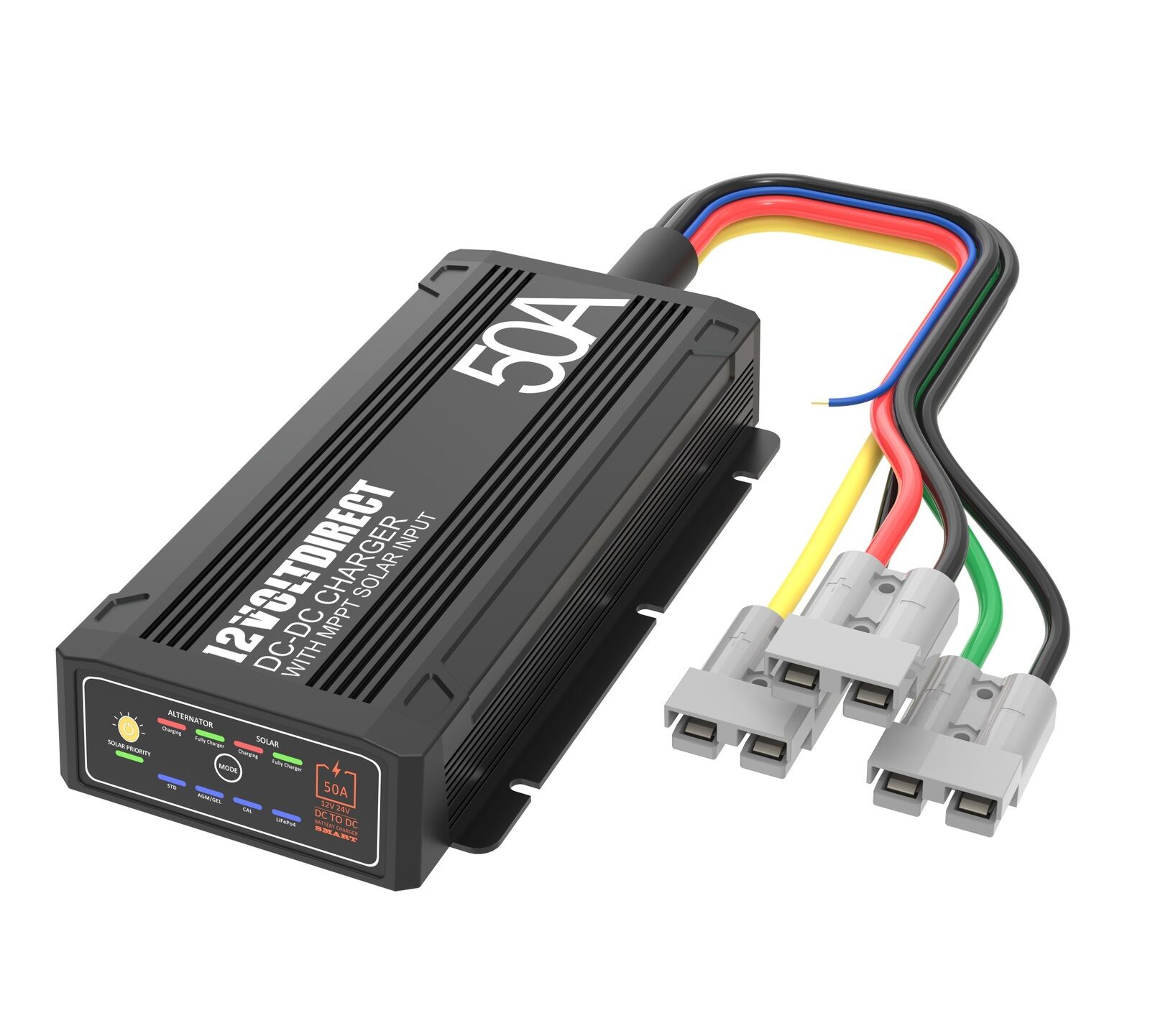

12 Volt Direct 50A DC to DC Battery Charger (TVD-DC50)
The 12 Volt Direct TVD-DC50 50A DC to DC Battery Charger is the ultimate solution for keeping your auxiliary battery fully charged and your 12V system running efficientlywhether youre touring the outback, working on the job site, or enjoying off-grid adventures. Purpose-built to handle demanding conditions, this charger offers powerful performance, advanced features, and reliable operation in one compact unit.
KEY FEATURES:
- High-Powered 50A Output
Delivers a robust 50-amp charging current, making it ideal for larger battery banks ranging from 200Ah to 600Ah. This ensures faster and more efficient charging, even for high-capacity systems powering fridges, lighting, inverters, and other demanding equipment.
- Dual Input Capability
Charges from both your vehicles alternator and an optional solar panel input (MPPT supported), ensuring your battery stays topped up no matter where you are. Allows seamless, simultaneous charging from both sources, maximizing charging efficiency.
- Multi-Stage Charging
Features Bulk, Absorption, and Float stages to optimize battery performance, extend battery life, and ensure safe, efficient charging every time.
- Automatic BMS Wake-Up for Lithium Batteries
Equipped with an automatic BMS (Battery Management System) wake-up function, eliminating the need to manually jump start a flat or sleeping lithium battery. This convenient feature ensures that even deeply discharged batteries are reactivated and recharged safely and automatically.
- Battery Chemistry Compatibility
Selectable charging profiles for AGM, Gel, Calcium, and Lithium Iron Phosphate (LiFePO4) batteriesgiving you the flexibility to match your battery type and system.
- Temperature Compensation
Built-in temperature sensor adjusts the charging voltage according to ambient and battery temperatures, preventing overcharging or undercharging in extreme conditions.
- Under-Bonnet Ready
Heavy-duty, IP67-rated construction resists dust, water, heat, and vibrationsperfect for rugged Australian conditions.
- Compact, Versatile Design
Slim, low-profile housing makes installation easy in tight spaces, whether its in 4WDs, caravans, camper trailers, or work vehicles.
- Comprehensive Protection Features
Equipped with overload, short-circuit, over-voltage, and over-temperature protection for safe, worry-free operation.
SPECIFCATIONS:
- Input Voltage: 9V32V DC
- Solar Input Voltage: Up to 32V DC (MPPT supported)
- Maximum Charging Current: 50A
- Recommended Battery Bank Size: 200Ah to 600Ah
- Battery Types Supported: AGM, Gel, Calcium, LiFePO4
- Charging Stages: Bulk, Absorption, Float
- BMS Wake-Up Function: Yes (Automatic)
- Operating Temperature Range: -20C to +80C
- Dimensions: 228mm (L) x 172mm (W) x 40mm (H)
- Weight: 1.8kg
- IP Rating: IP67
