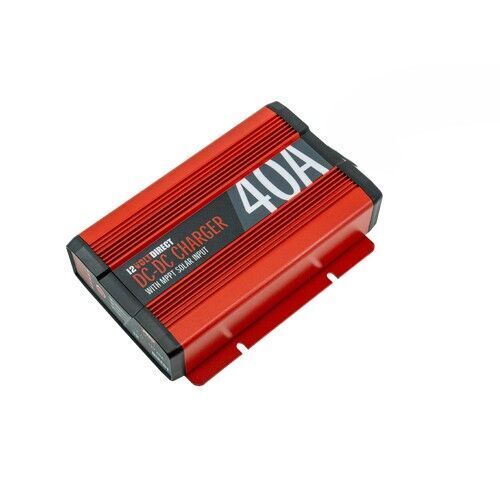

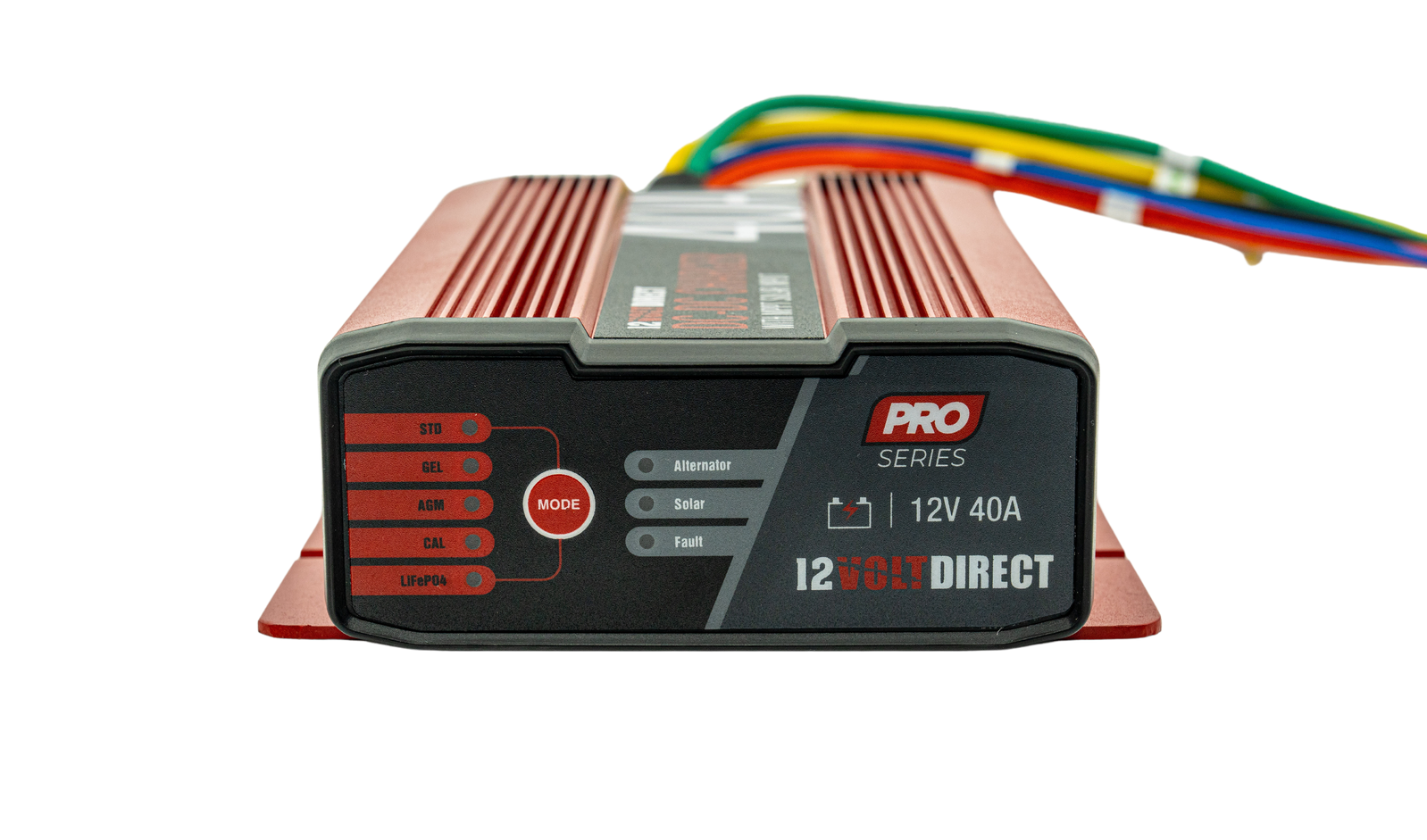

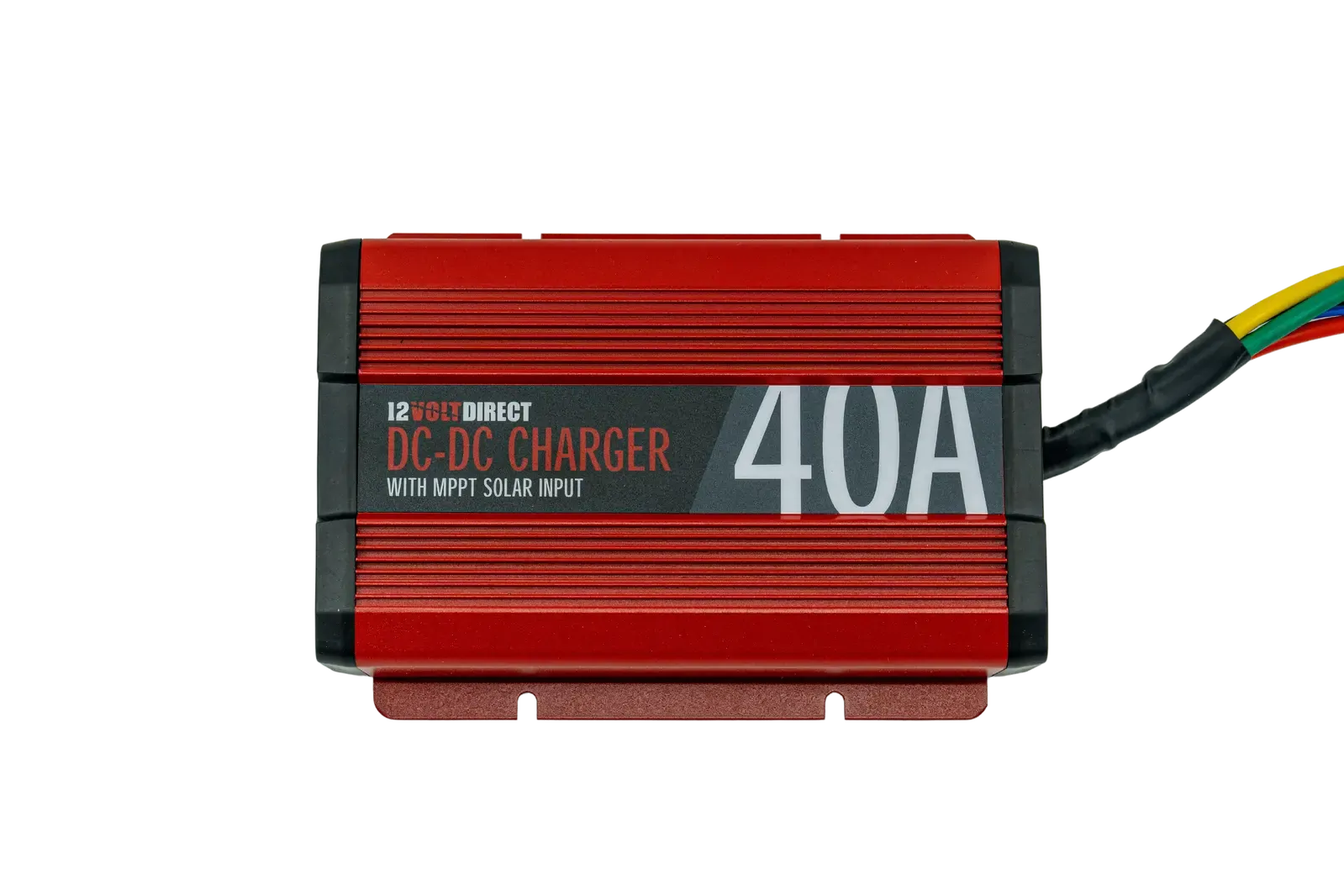

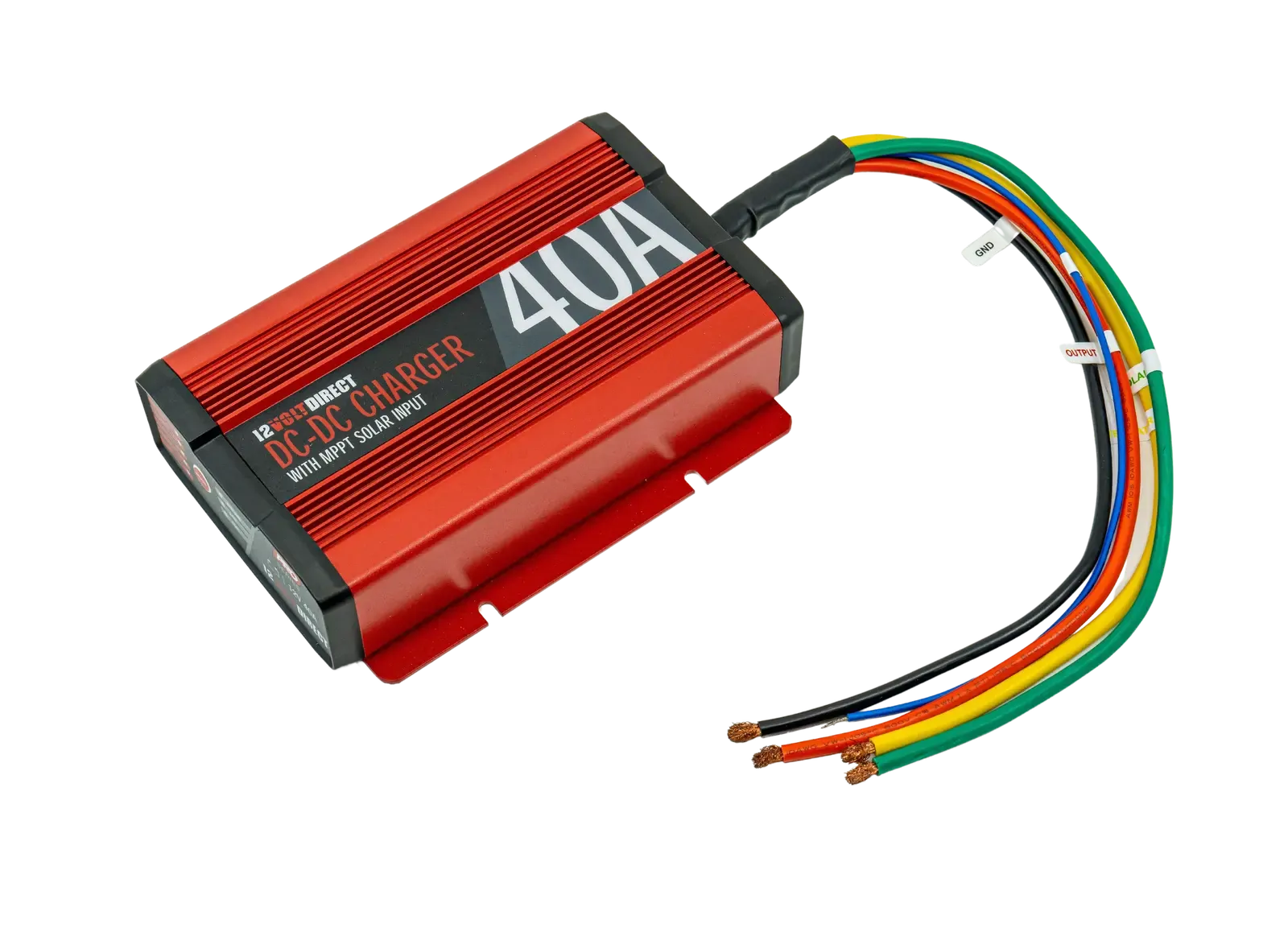

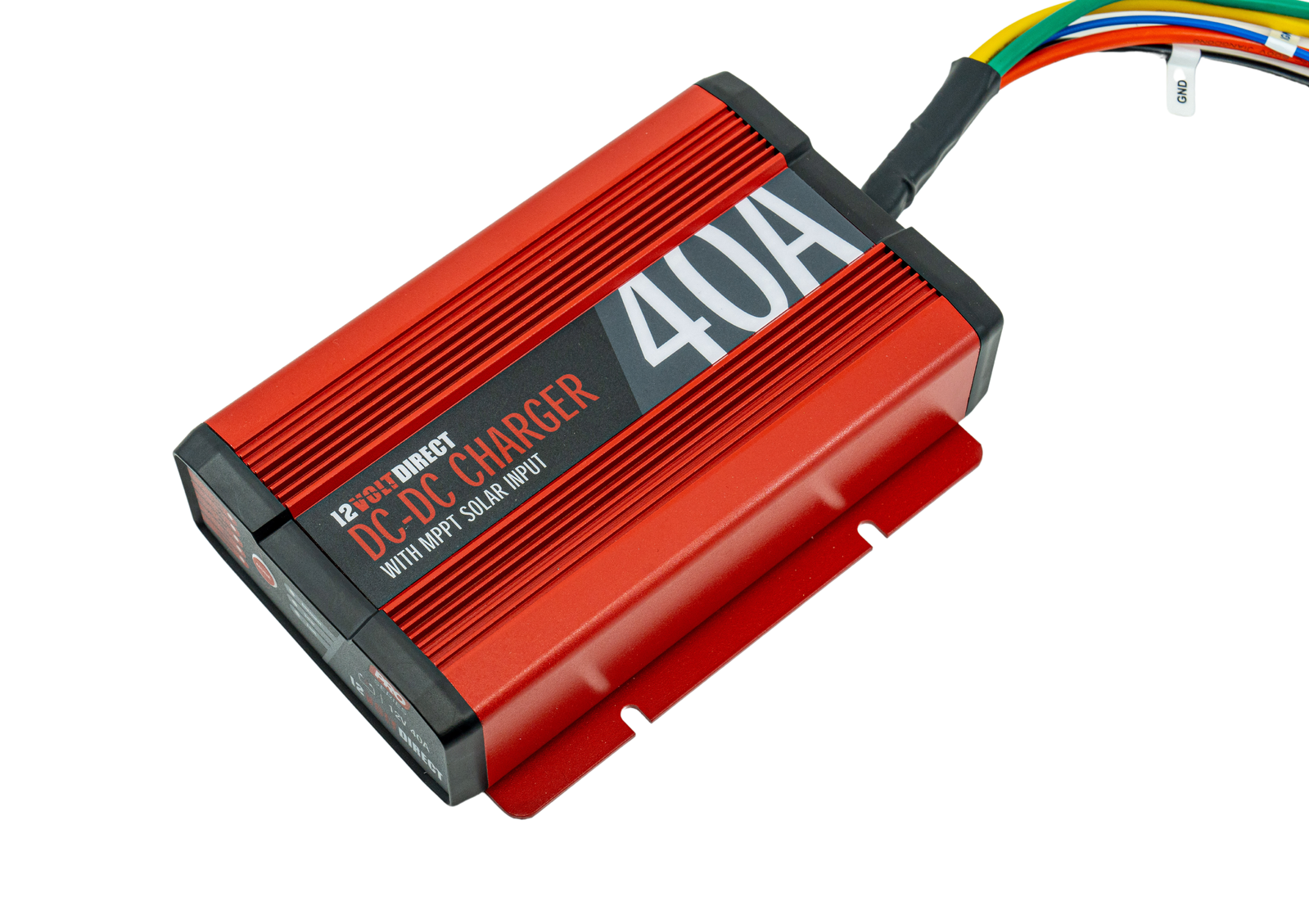

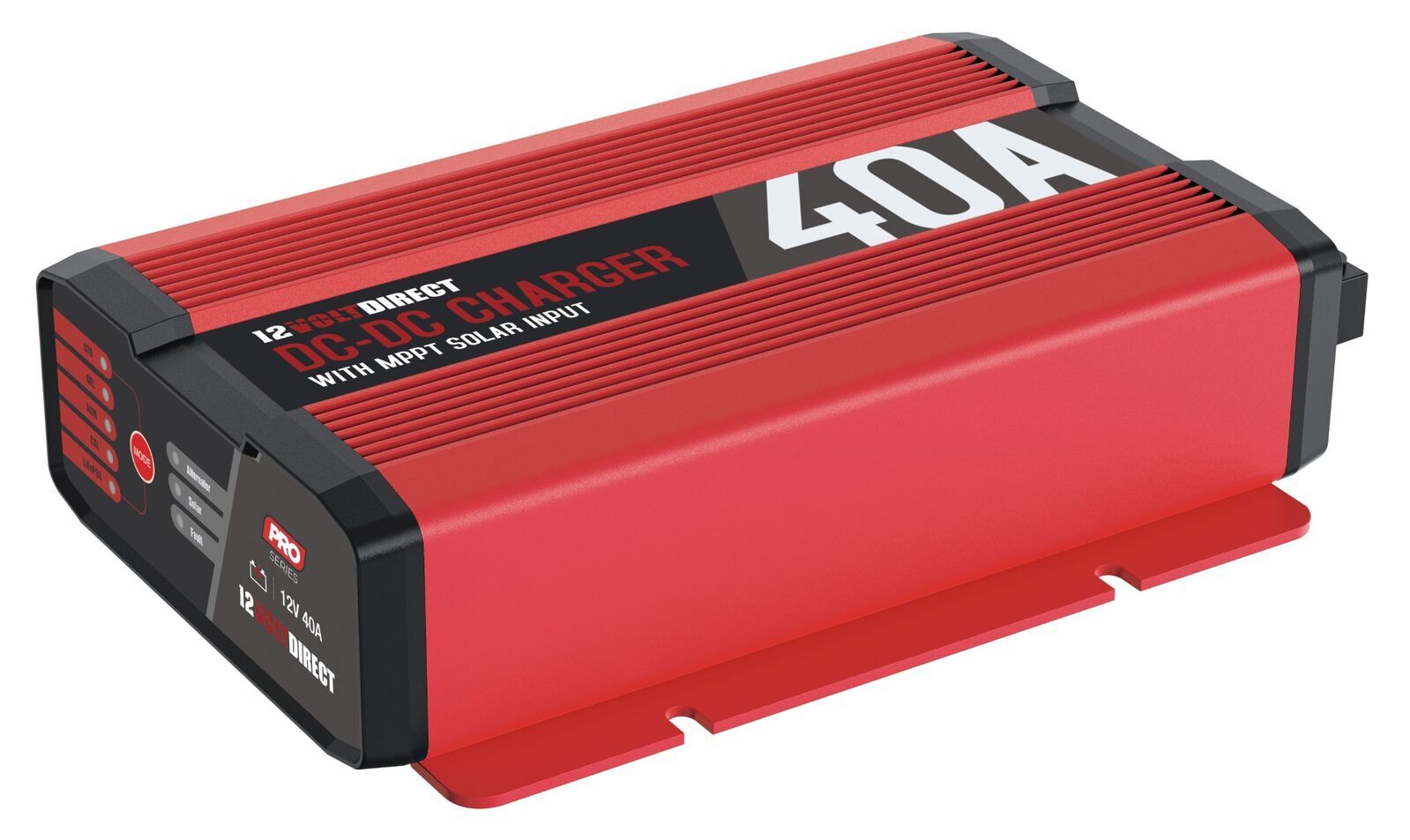

12 Volt Direct 40 Amp Pro Series DC to DC Charger
DETAILS
Introducing the 12 Volt Direct 40 Amp Pro Series DC to DC Charger, a robust and efficient solution designed to keep your batteries fully charged and ready for any adventure.
- IP54 Ingress Protection with Internal Silicone Potting: Engineered to withstand harsh environments, the charger is protected against dust and water splashes, ensuring reliable performance in demanding conditions.
-
Suitable for Under Bonnet Applications: Designed for versatility, it fits seamlessly under the bonnet, making it ideal for vehicles with limited space.
-
Robust Insulated Heat-Dispersing Casing: The charger's casing efficiently dissipates heat, maintaining optimal operating temperatures and ensuring longevity.
-
High Efficiency with No Voltage Drop: Experience consistent and reliable power delivery without any voltage drop, maximizing the efficiency of your charging system.
-
Soft-Start Function: Gently initiates the charging process, protecting your batteries from sudden surges and extending their overall lifespan.
-
Automatic BMS Wakeup Function for Lithium Batteries: Automatically activates the Battery Management System in lithium batteries, ensuring they are correctly charged and maintained.
-
Specialized Lithium LiFePO4 Charging Algorithm: Tailored charging profiles for Lithium Iron Phosphate batteries guarantee optimal performance and safety.
-
Multistage Charging: Fully automatic multistage charging adapts to the battery's needs, providing bulk, absorption, and float stages for comprehensive charging.
-
Compatibility: Supports a wide range of battery types, including Sealed Lead Acid (SLA), Gel, Absorbed Glass Mat (AGM), Flooded, Lead Acid, and Lithium, making it a versatile choice for various applications
KEY FEATURES:
- Suitable for: SLA, GEL, AGM, Flooded, Lead Acid & Lithium (LiFePO4)
- Multistage Charging: Fully automatic multistage battery charger
- Specialised Lithium LiFePO4 Charging Algorithm
- Automatic BMS Wakeup Function: For lithium batteries
- Soft-Start Function
- High-Efficiency: No voltage drop
- Robust Insulated Heat Dispersing Casing
- Suitable for Under Bonnet Applications
- IP54 Ingress Protection with Internal Silicone Potting


SPECIFICATIONS:
- Input Voltage Alternator: 11.6-18.0 Volts DC
- Input Voltage Solar: 12.0-28.0 Volts DC
- Max Output Current: 40 Amps
- Max Output Power: 500 Watts
- No Load Current Draw: <10mA
- Efficiency: 94%
- Charging Battery Capacity: 80-500AH
- Working Temperature: -20C to +60C
- Minimum Battery Voltage: 4V / 0V Lithium
- Dimensions: 196 x 129 x 46mm
- Charge Type: 3 Stage
- Ingress Protection: IP54
FEATURES
12 Volt Direct 40 Amp Pro Series DC to DC Charger Brand: 12 Volt Direct SKU: TVD-DC40-PRO
