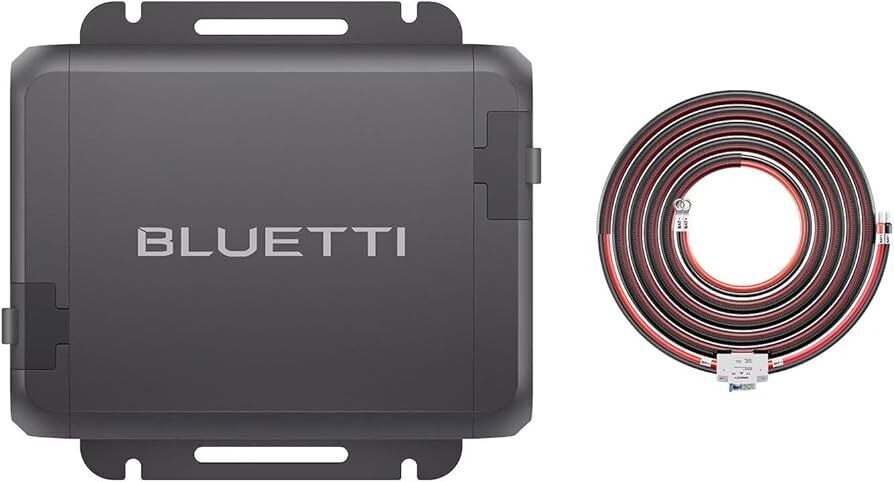

BLUETTI Charger 1 560W Alternator Charger for Power Stations with DC Input Cable
In Stock - Ready for immediate dispatch or pickup
Pickup Available from Punchbowl, NSW
Buy Now, Pay Later.
DETAILS
Overview
Charge your power station while you drive
Charger 1 is a 560W DC-DC alternator charger. It wires to your 12V or 24V starter battery and feeds your power station through its solar (MC4) input while the engine runs.
That is about six times what a cigarette lighter socket gives you. Bluetti rates it to fill a 1kWh power station in about 2.5 hours on the road.
BLUETTI says Charger 1 works with all BLUETTI power stations, including the Apex 300, Elite 400, Elite 300, Elite 200 V2, Elite 100 V2, AC70 and AC200L it sells it with, plus the AC2A, AC50B, AC60, AC180, AC180T, AC200MAX, AC240, AC300, AC500, EB3A, EB55 and EB70S named in its setup guide. It also suits most third-party power stations that charge from solar through MC4 (Bluetti notes a rare few may charge unevenly).
Why buy BLUETTI from us
Your local BLUETTI specialists
Charging on the move only works if the setup is right. Buy from a local team that can help you get it right.
✓A real shop in Sydney
We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.
✓Talk to a real person in Australia
Call or message our Sydney team (details on our contact page). You’ll speak to someone local who knows BLUETTI, not an overseas call centre.
✓Shipped Australia-wide
We send BLUETTI orders to every state and territory, from the city to the bush.
✓Wired right for your vehicle
We’ll help you work out the cables, fuses and connections the BLUETTI Charger 1 560W Alternator Charger for Power Stations with DC Input Cable needs for your vehicle and your BLUETTI.
✓Local support after you buy
Questions about setting it up, charging or getting the most from your BLUETTI? Our team here in Australia is happy to help.
✓The whole setup in one place
We stock the BLUETTI power stations, panels, chargers, cables and mounting trays that work together, so you can get everything from one store.
Ask us a questionMake us your first stop for BLUETTI.
Video
Fast road charging
Six times faster than the lighter socket
A 12V lighter socket gives roughly 100W. Charger 1 pulls up to 50A from a 12V system (25A on 24V) and sends up to 560W to your power station.
- ✓Up to 560W into your power station
- ✓Fills a 1kWh unit in about 2.5 hours (Bluetti figure)
- ✓Default 27V output for small units; set 56V in the app for the full 560W
- ✓Works on hybrids with an alternator and starter battery (not EVs)
Looks after your starting battery
Won’t leave you flat
Charger 1 watches your starter battery. It stops drawing power 3 to 6 seconds after the engine turns off, and cuts out if the battery drops below 12.0V (26.0V on 24V systems).
- ✓Short circuit, reverse connection, under-voltage and over-temperature protection
- ✓Fan cooling for steady output
- ✓60A circuit breaker on the supplied DC input cable
- ✓Rated -20°C to 60°C operating
App control
Set it and check it from your phone
Connect over Bluetooth with the BLUETTI app. Set the output voltage to suit your power station, save it as the default, and check the car battery and charging status while you drive.
Running more than one power station? Change the voltage in the app when you swap units.
Frequently asked questions
Which power stations does Charger 1 work with?
BLUETTI says Charger 1 works with all BLUETTI power stations, including the Apex 300, Elite 400, Elite 300, Elite 200 V2, Elite 100 V2, AC70 and AC200L it sells it with, plus the AC2A, AC50B, AC60, AC180, AC180T, AC200MAX, AC240, AC300, AC500, EB3A, EB55 and EB70S named in its setup guide. It also suits most third-party power stations that charge from solar through MC4 (Bluetti notes a rare few may charge unevenly).
What vehicles can I fit it to?
Any vehicle with a 12V or 24V starter battery, including 4WDs, vans, motorhomes and trucks. It works on hybrids that have an alternator and starter battery, but not on EVs.
Will it flatten my starting battery?
No. It stops drawing power 3 to 6 seconds after the engine is off, and stops charging if the battery falls below 12.0V (26.0V on 24V).
Why am I not getting 560W?
The default output is 27V, which suits smaller units. Set the output to 56V in the BLUETTI app for the full 560W, and check your power station can accept that much on its solar input.
Can I fit it myself?

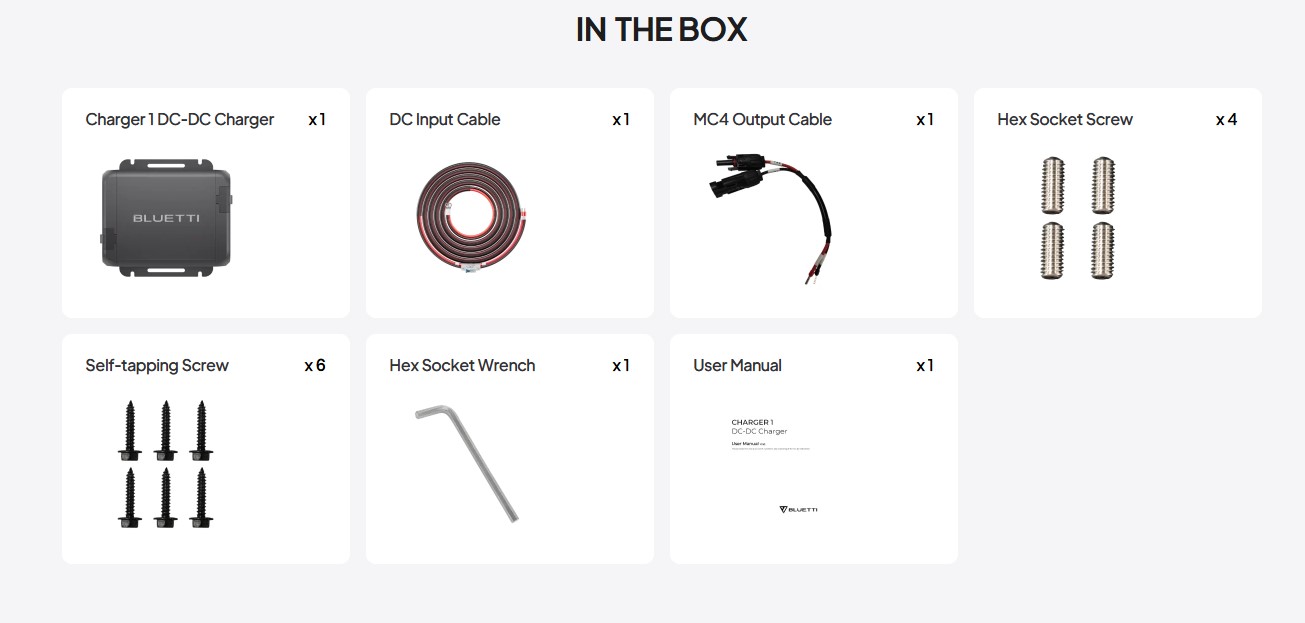

Bluetti says most people can, using the supplied 6AWG DC input cable with its 60A circuit breaker and Bluetti’s install video. You need a spanner for the battery terminals and a drill if you mount it in the boot. If you are unsure, use an auto electrician. Our TVD-BE06 wiring kit is also available.
Can I run two Charger 1 units in parallel?
No. Bluetti says two Charger 1 units can’t be paralleled into one power station.
Still got a question? Our Sydney team is happy to help. Get in touch and you’ll talk to a real person in Australia.
Features
- ✓Up to 560W DC-DC charging from your vehicle
- ✓About 6x faster than a 12V cigarette lighter socket
- ✓Suits 12V and 24V starter batteries
- ✓Output adjustable 15–56V (12V vehicle) or 27–56V (24V vehicle) in the app
- ✓Charges through the power station’s MC4 solar input
- ✓Auto off 3–6 seconds after the engine stops
- ✓Under-voltage cut-out protects the starting battery
- ✓Short circuit, reverse polarity and over-temperature protection
- ✓Fan cooled, IP20, 50dB max
- ✓Compact 145 x 110 x 60 mm, approx. 1.2 kg
- ✓Bluetooth control via the BLUETTI app
- ✓2-year Bluetti warranty
Make it a complete setup
Pairs well with
Our 6B&S DC input cable kit with 60A midi fuse, made for a tidy Charger 1 install.
Apex 300: Bluetti sells it with Charger 1 for RV and touring setups.
Elite 400: 3,840Wh unit Bluetti pairs with Charger 1.
AC180P: 1,440Wh unit, set Charger 1 to a higher voltage for faster charging.
AC70P: compact 864Wh unit that tops up quickly on the road.
Product Details
| SKU | BE-D60L |
| Barcode # | 6970991298103 |
| Brand | Bluetti |
| Compatible With | All BLUETTI power stations |
| Output Voltage | 15-56V adjustable |
| Max Charging Power | 560W |
| Shipping Weight | 3.2000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.210m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.000150000m3 |
