12 Volt Direct 200ah Battery Tray 460 x 180mm
In Stock - Ready for immediate dispatch or pickup
Pickup Available from Punchbowl, NSW
Buy Now, Pay Later.
DETAILS
Overview
Bolt down.
Strap in.

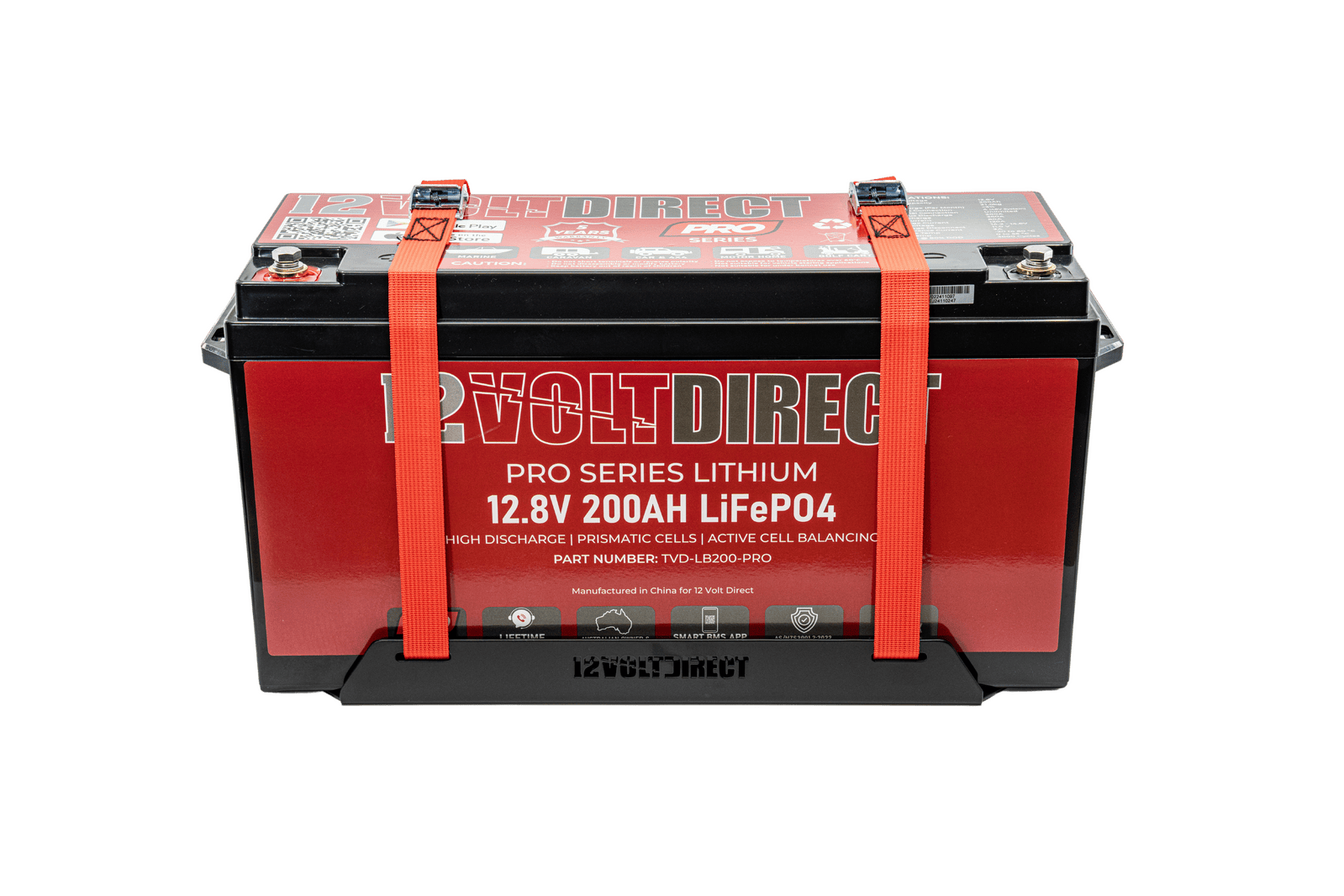

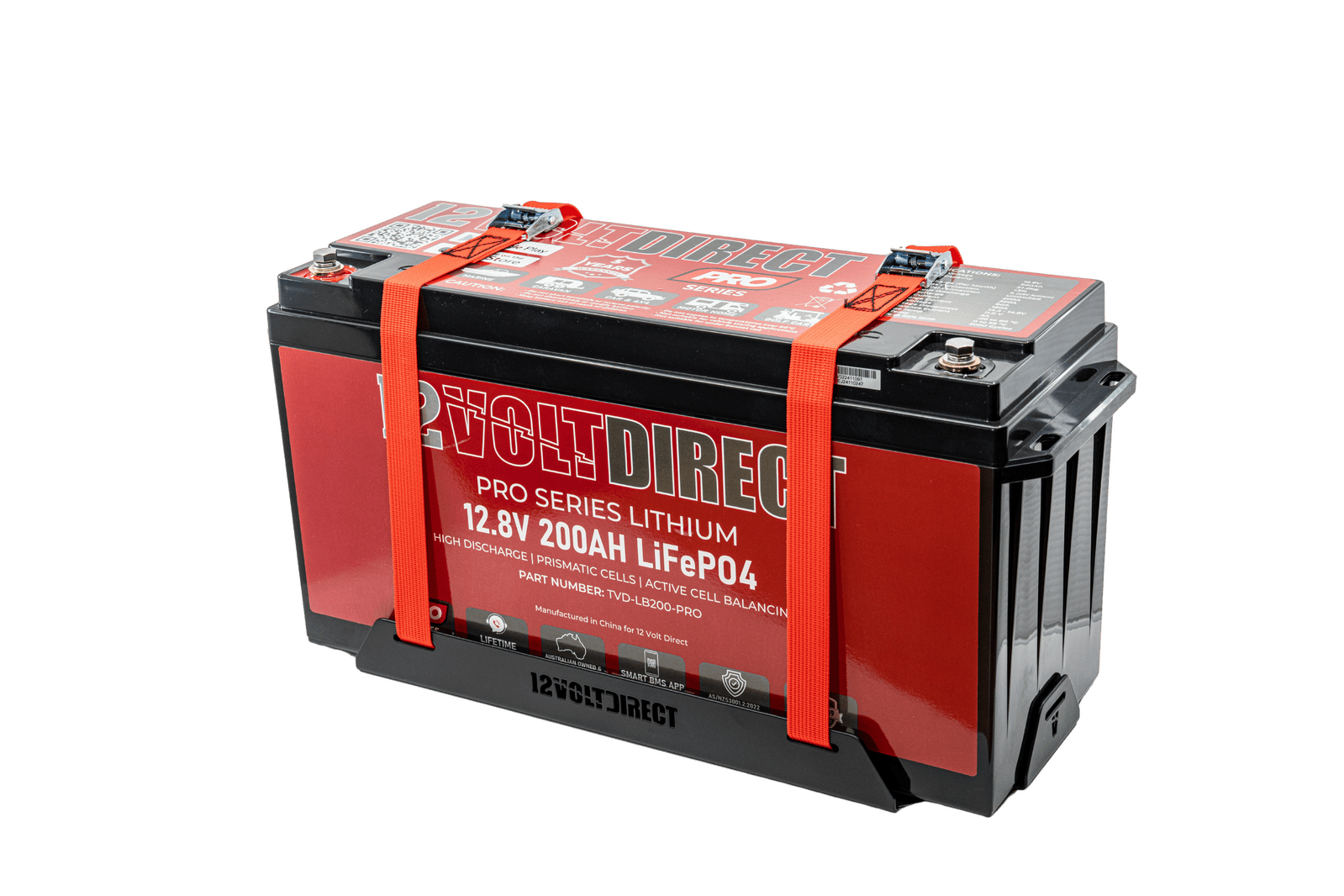

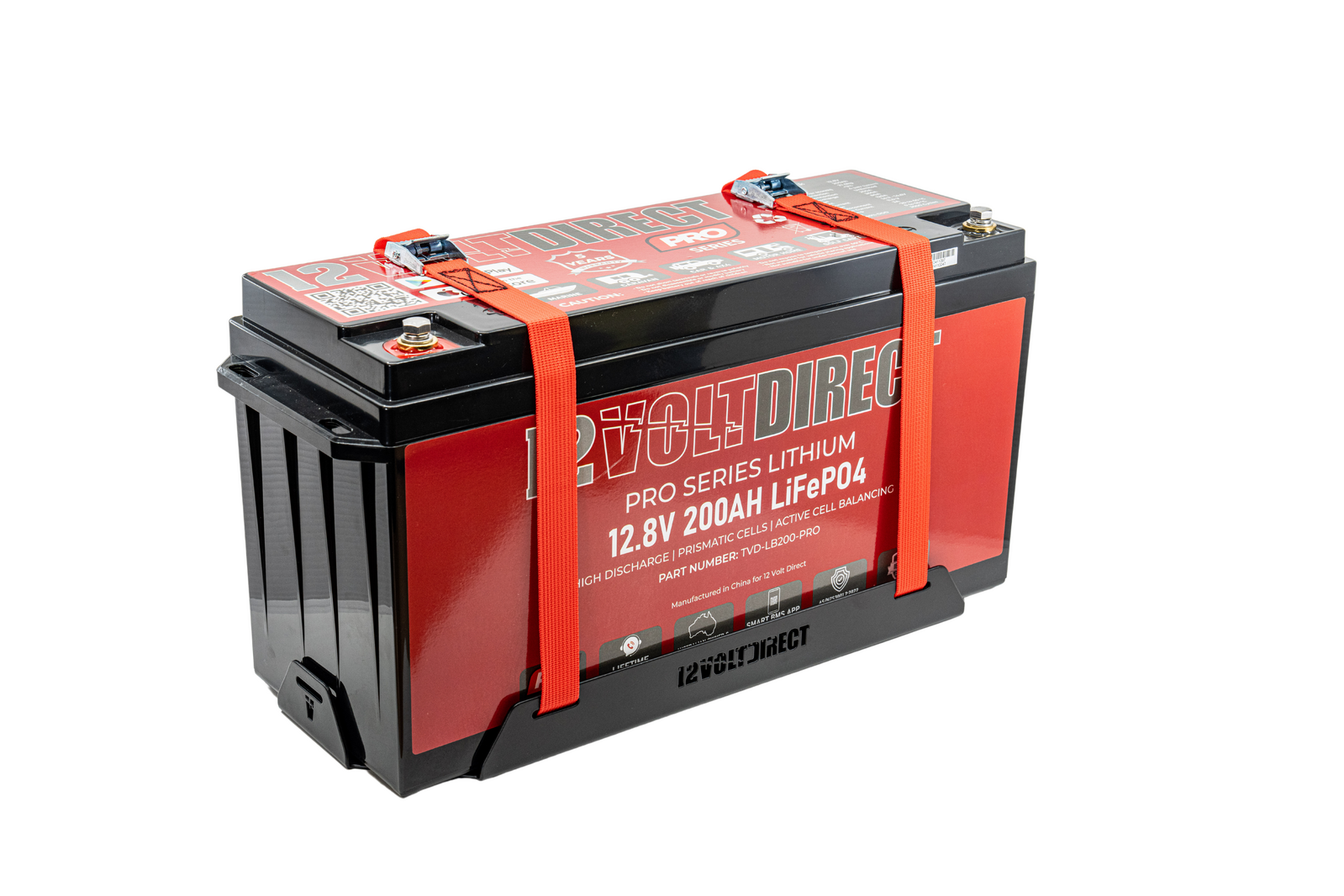

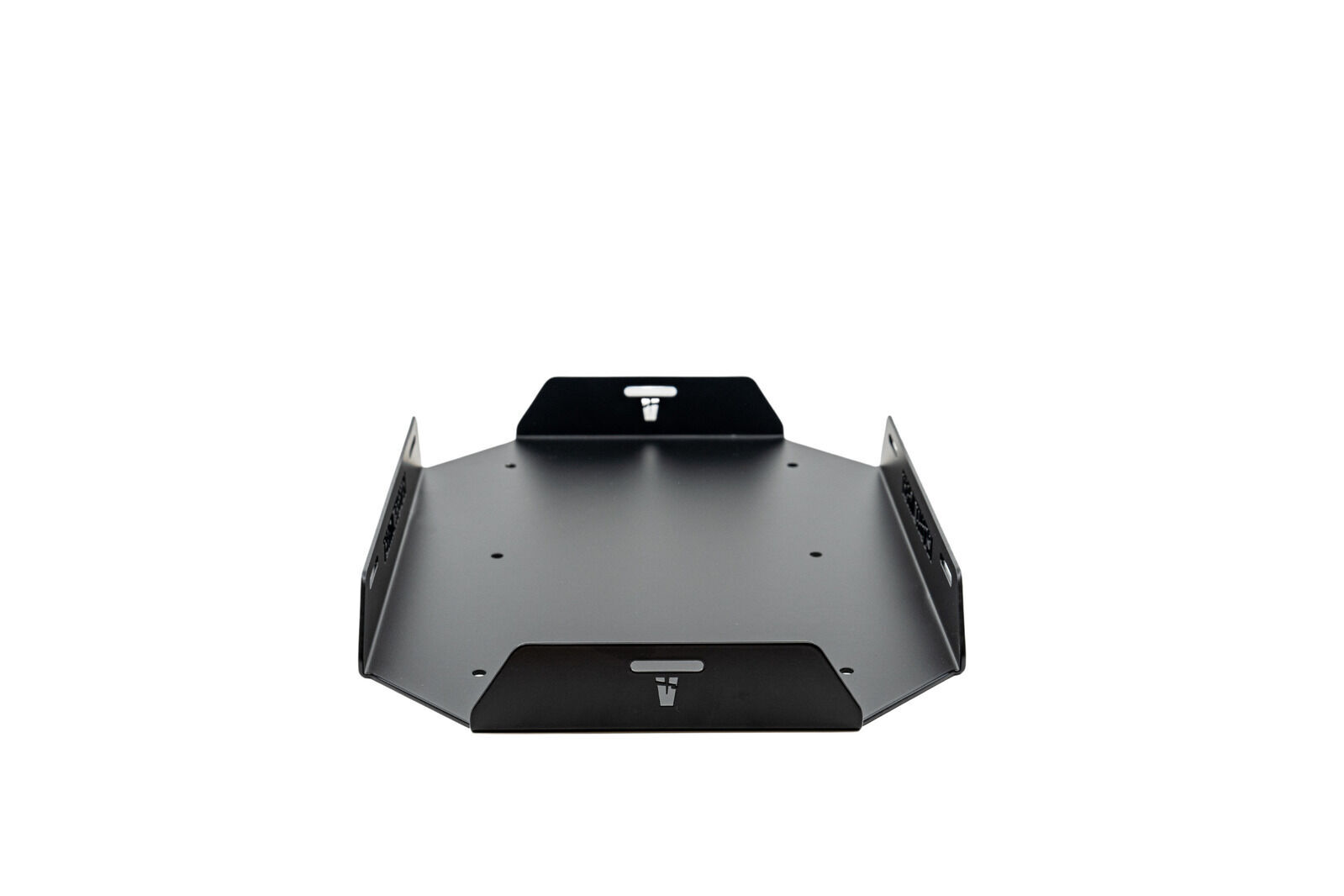

A made-to-measure steel tray for your 12 Volt Direct 200Ah Pro & Weekender lithium battery. Bolt it down, strap the battery in, and it stays put on the roughest roads.
Made for the 200Ah Pro & Weekender
This 12 Volt Direct battery tray is cut and folded to suit our 12 Volt Direct 200Ah Pro Series (TVD-LB200-PRO) and 12 Volt Direct 200Ah Weekender (TVD-LB200-WKNDR) lithium batteries. The base sits flat under the battery and the folded ends stop it shifting forward and back.
Use it in a canopy, under a drawer system, in a camper or a van. It gives the battery a proper mounting point instead of letting it ride loose, so your terminals and cables aren’t taking the strain over corrugations.
Compatibility
- ✓12 Volt Direct 200Ah Pro Series (TVD-LB200-PRO)
- ✓12 Volt Direct 200Ah Weekender (TVD-LB200-WKNDR)
Not suitable for:
- ✕12 Volt Direct 300Ah Pro / Weekender and 200Ah Compact Weekender – use TVD-BT08
Tech specs
| Suits | 12 Volt Direct 200Ah Pro Series (TVD-LB200-PRO) 12 Volt Direct 200Ah Weekender (TVD-LB200-WKNDR) |

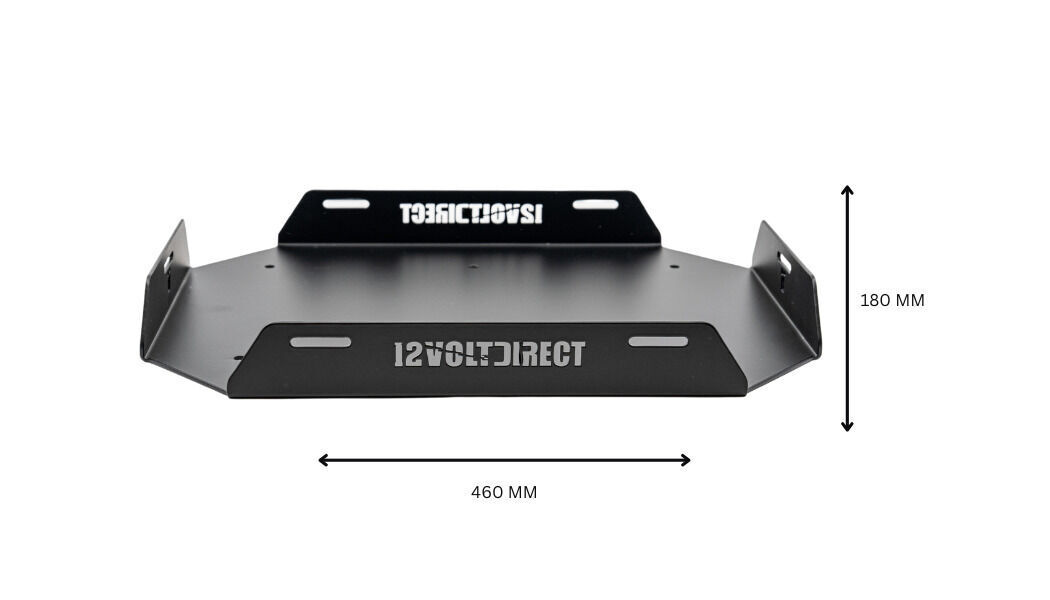

| Tray size | 460 x 180 mm |
| Material | Powder-coated steel, black |
| Mounting | 6 mm bolt holes in the base |
| Tie-down | Strap slots at each end |
| Brand | 12 Volt Direct |
| Warranty | 12 months |
What’s included
1 x 12 Volt Direct 200Ah battery tray
Tie-down straps and mounting bolts are not included.
Simple installation
Three steps
No brackets to build and no special tools. A drill, a few bolts and a strap is all it takes.
Choose a flat, solid surface in the tub, canopy, drawer, van or camper. Check there’s room for cables and airflow.
Mark and drill through the 6 mm holes and fix the tray with bolts or screws to suit the surface.
Sit the battery in the tray and run a tie-down strap through the end slots and over the top. Cinch it tight.
Always use a strap
The tray stops your battery sliding, but a tie-down strap through the end slots is what holds it down on rough roads. Straps aren’t included, so use a cam or ratchet strap rated for the weight.
Shop the 200Ah Pro Series batteryNot sure? Contact our teamFeatures
12 Volt Direct 200ah Battery Tray 460 x 180mm Brand: 12 Volt Direct SKU: TVD-BT04
Product Details
| SKU | TVD-BT04 |
| Brand | 12 Volt Direct |
| Type | Tray Mount |
| SKU | TVD-BT04 |
| Shipping Weight | 1.7000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.060m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.006600000m3 |
