Flush Mount Panel: 50A Anderson-Style Plug + Cigarette Socket + QC 3.0 USB-A & USB-C PD Socket
In Stock - Ready for immediate dispatch or pickup
Pickup Available from Punchbowl, NSW
Buy Now, Pay Later.
DETAILS
Overview

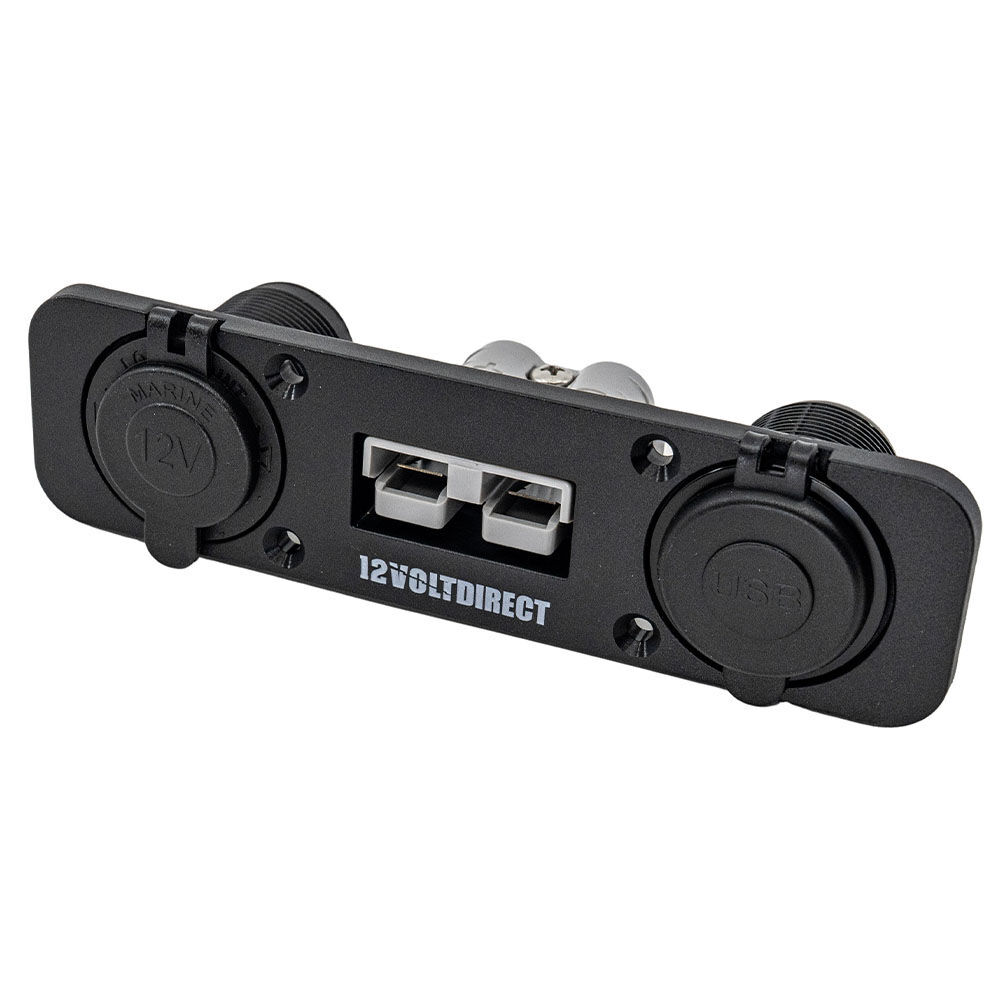

Flush mount power panel: Anderson, cigarette and USB
Three outlets in one neat, low-profile panel: a recessed 50A Anderson-style plug for your fridge, compressor or power station, a 10A marine cigarette socket for 12V accessories, and a fast-charging USB socket with QC 3.0 USB-A and USB-C PD ports. It mounts flush into trims, canopy walls, drawer fronts and battery boxes for a factory-finished look.
What’s on the panel
| Outlet | Rating | Use it for |
|---|---|---|
| Anderson-style plug | 50A | Fridges, compressors, power stations, Anderson leads |
| Marine cigarette socket | 10A | 12V plugs: pumps, inflators, chargers, cigarette fridges |
| USB socket | USB-C PD 45 W + QC 3.0 USB-A 18 W | Phones, tablets, cameras, GPS, headlamps |
The USB socket is the same QC 3.0 + USB-C PD unit we sell on its own as the TVDSU3, so it fast charges iPhone, Samsung, Pixel and most other phones.
Neat, strong installation
- ✓Flush faceplate 160 x 43 x 5 mm: sits almost flat against the panel for a clean, factory look

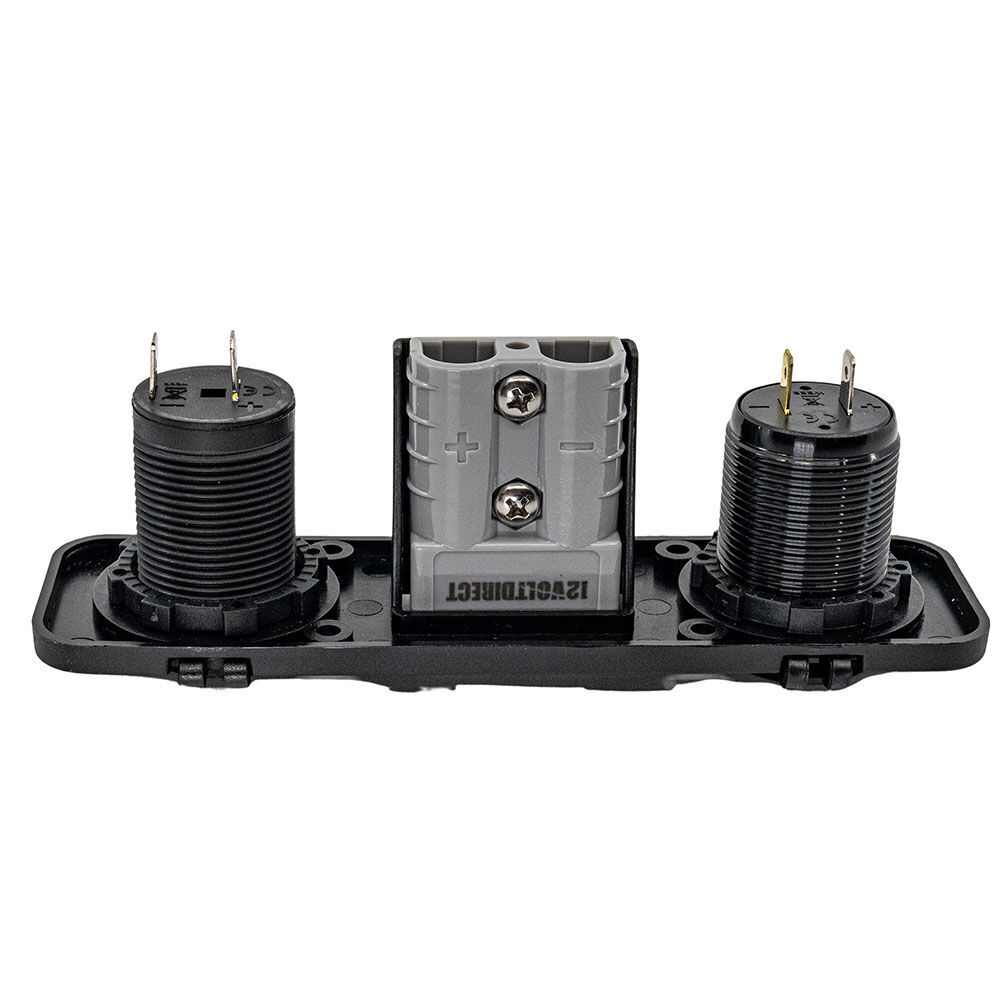

- ✓Recessed Anderson plug: the plug sits behind the face, protected from knocks
- ✓Hinged caps on the cigarette and USB sockets keep out dust and water
- ✓Mounting hardware included
- ✓Wire each outlet separately: run each through its own fuse so a fault on one doesn’t shut down the others
The flush mount range
This panel is part of our flush mount range, so you can match the outlets across your setup: a flush mount Anderson plug on its own, an Anderson plug with a cigarette socket, and this three-outlet panel with USB.
Wire the Anderson plug with cable sized for the load (6 mm² or heavier for a 50A circuit over short runs) and fuse each circuit close to the battery.
Warranty
Need a hand choosing?
Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.
Features
- ✓Recessed 50A Anderson-style plug
- ✓10A marine cigarette socket with cap
- ✓USB socket with USB-C PD (45 W) and QC 3.0 USB-A (18 W)
- ✓Flush faceplate 160 x 43 x 5 mm
- ✓Mounting hardware included
- ✓2-year warranty
Product Details
| SKU | TVDFMAUC |
| Barcode # | 744109316111 |
| Brand | 12 Volt Direct |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001425000m3 |
