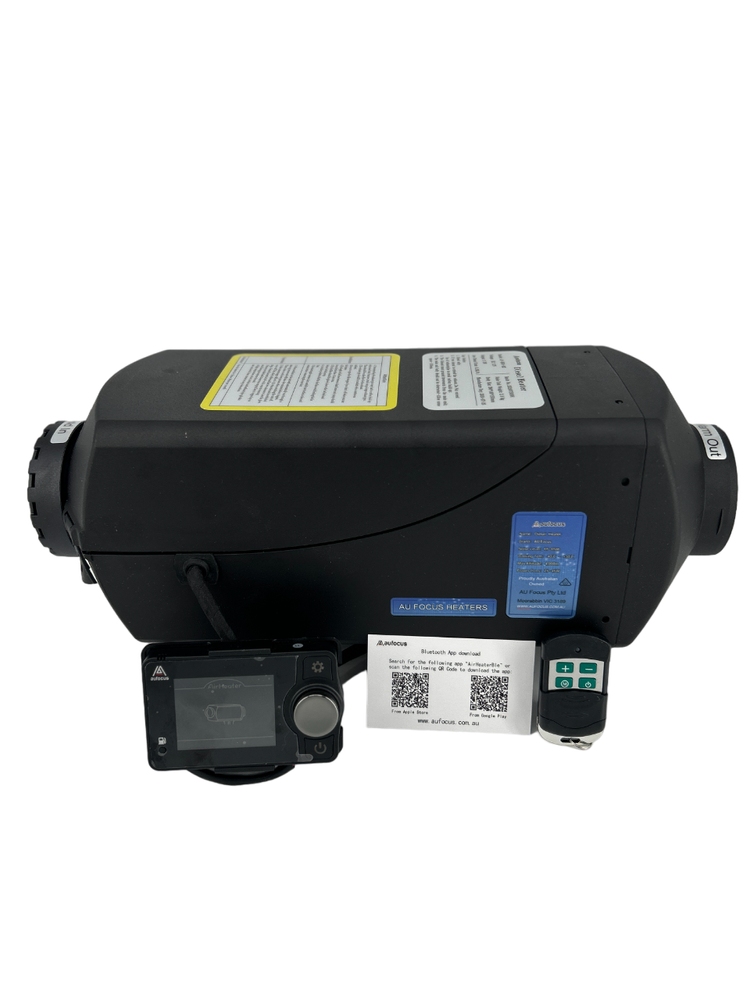

AU Focus Diesel Heater - 5kW MZ - Gen 4 Kit
More infoBuy Now, Pay Later.
DETAILS
This Premium Quality AU Focus Diesel heater is backed by a 24 month warranty.
AuFocus has built a reputation for quality, reliability and great value for money and that is why AuFocus is now the most popular choice for the RV industry in Australia.
KEY FEATURES:
- RCM Certification
- Three modes: 1. Fan only / 2. Manual Heat Mode 1 - 10 / 3. Smart mode - set a temperature and it stops heating and burning fuel once it arrives at the target temperature and starts again once it drops two degrees.
- Small and compact design for an easy space-saving installation
- Easy to use LCD panel with remote control - Also features, Bluetooth connectivity and app to control from your phone.
- Sensors on both the control board and fan for additional safety protection
- High and Low Voltage & Current protection
- Fast heat up time and maintains a consistent temperature
- Auto cool down process when powered off
- Low fuel consumption
SPECIFICATIONS:
- Power: 1KW-5KW Adjustable
- Fuel: Diesel only
- Rated Voltage: DC 12V
- Fuel Consumption(L/h): 0.1-0.5
- Working Temperature: -40?~+50?
- Working Temperature of the Oil pump: -40?~+40?
- Main Unit Size: Length 390mm* Height 140mm* Width 150mm*
- Tank Size: Depth 110mm* Height 353mm* Width 320mm* Neck&Cap Height 75mm*
- Black flame retardant plastic casing (Top Grade)
- LCD - Can display Error Codes for easy troubleshooting if required
- Power (5~35w/h). peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.
WHATS IN THE BOX:
- Easy to follow DIY Installation manual
- Easy to read user manual

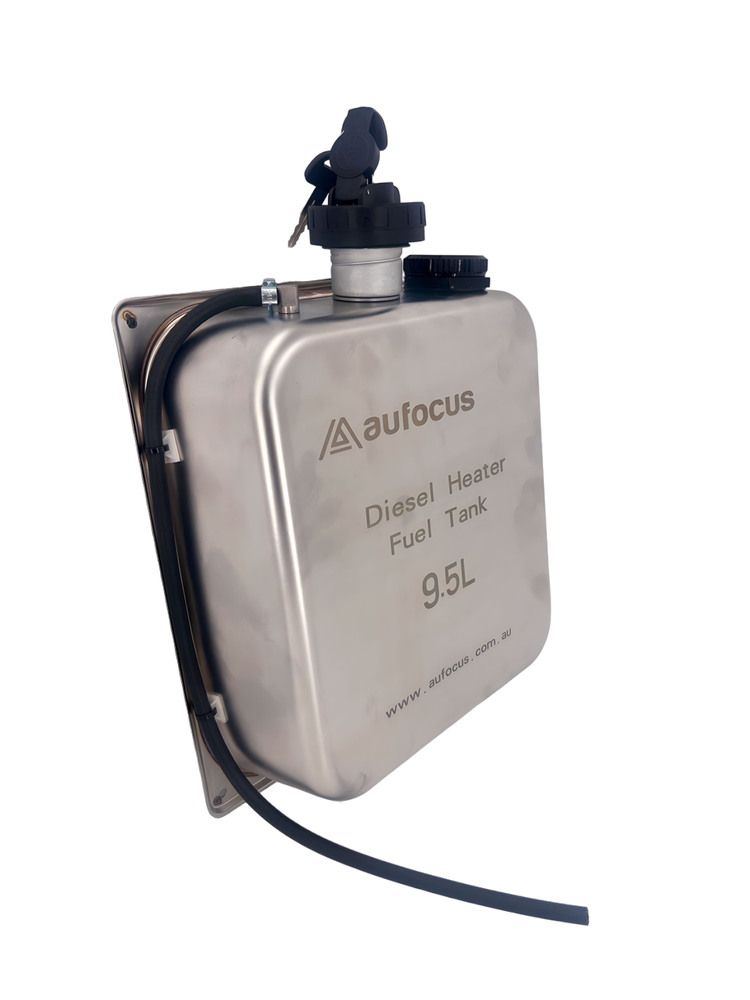

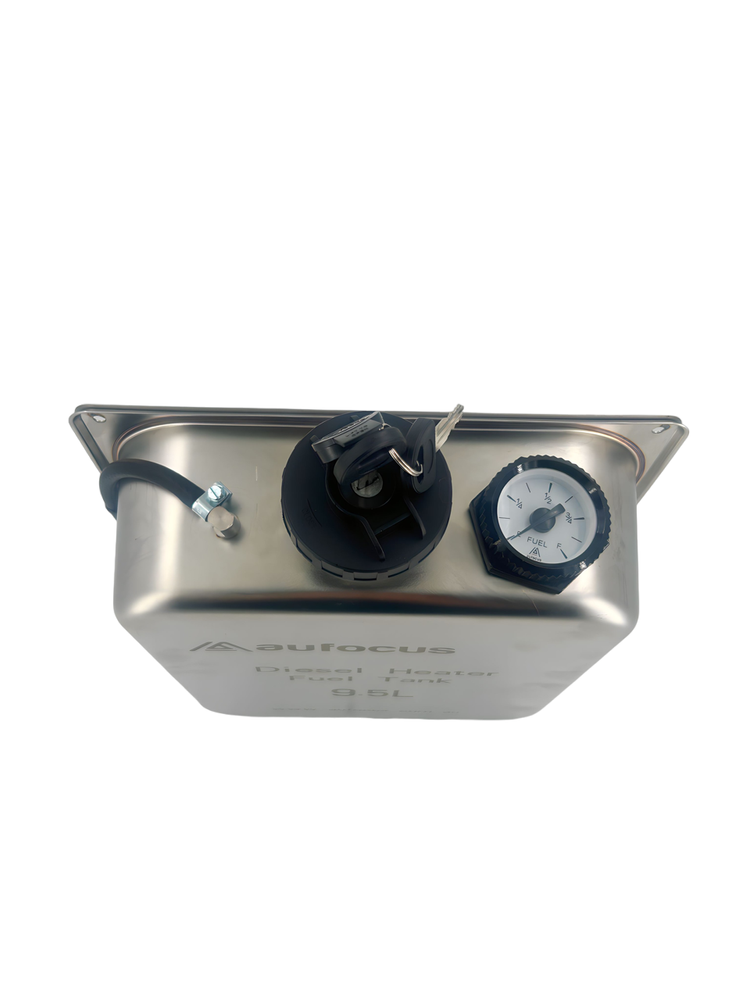

- 9.5L Stainless Steel Fuel Tank with top mount top mounted dial fuel level gauge, lockable fuel cap and fuel pickup

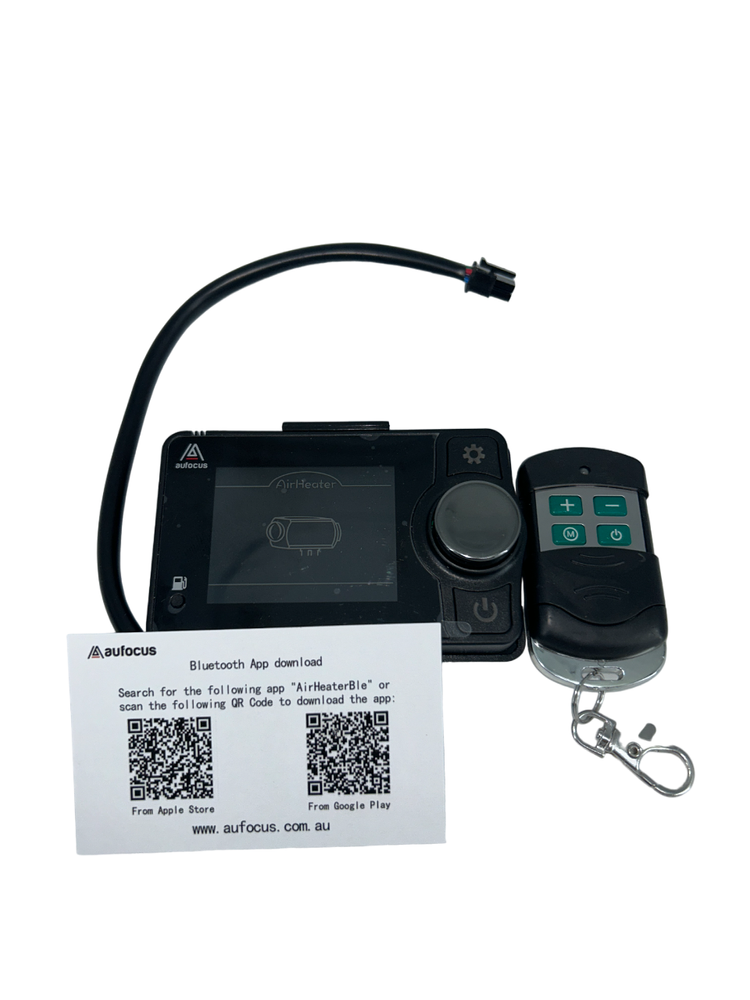

- LCD panel with remote control plus easy to download app and control the heater from your phone.
- Solid construction - high grade heat resistant hard casing

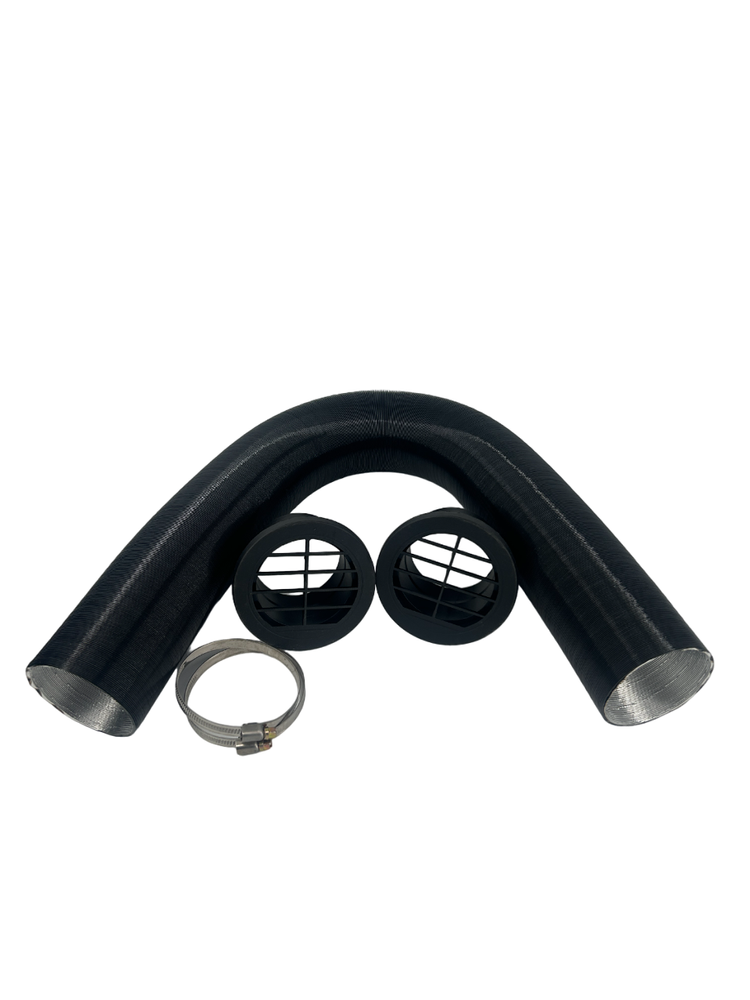

- Directional flat vents

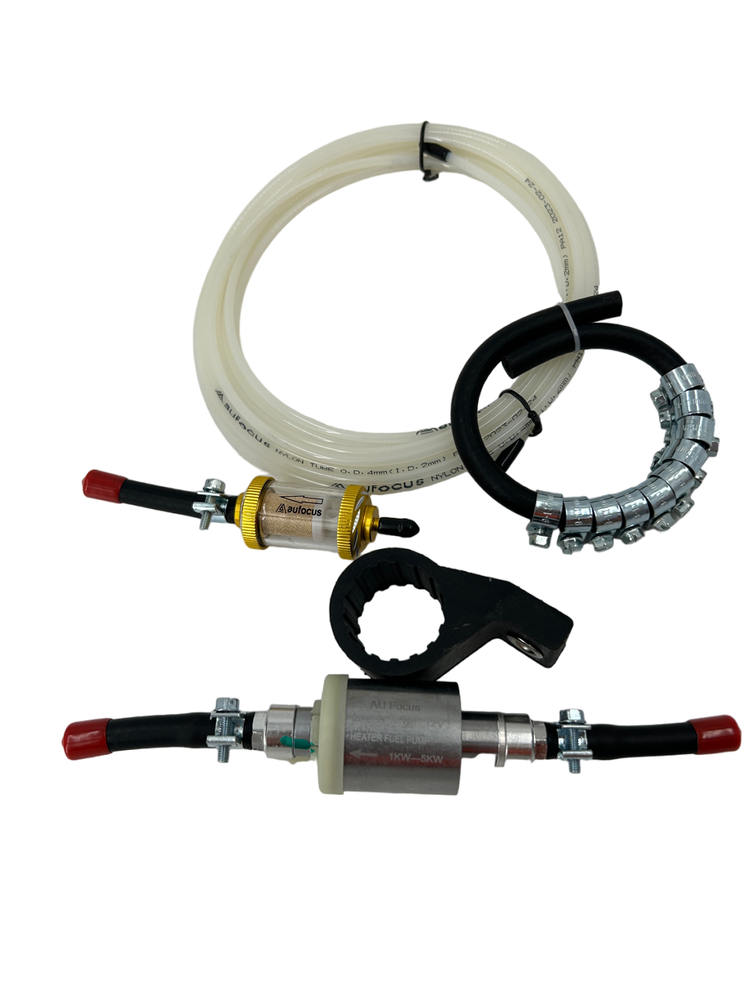

- Super quiet heavy duty fuel pump
- PA66 hard nylon fuel line 6m (size:4*1mm(thickness)) and good quality black rubber connectors.

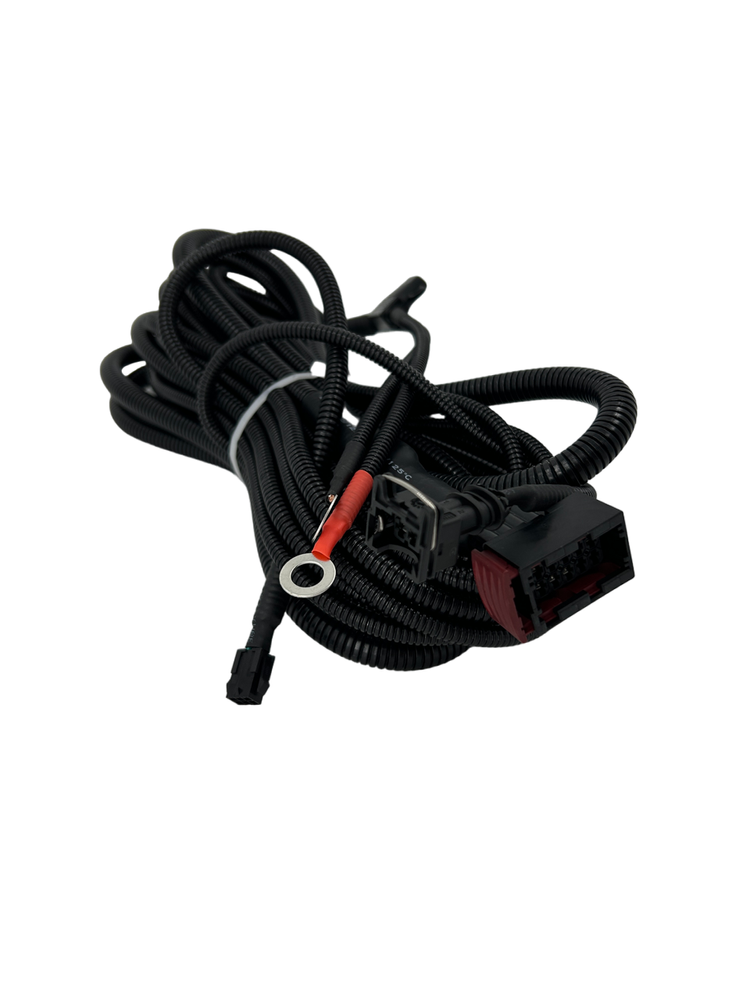

- Unique design wiring harness- The wiring harness includes 5m of 2.5mm wire core power cable, 2.5m controller cable and 3.5m pump cable power - All in premium flame retardant conduit and Anderson Plugs attached for optional use

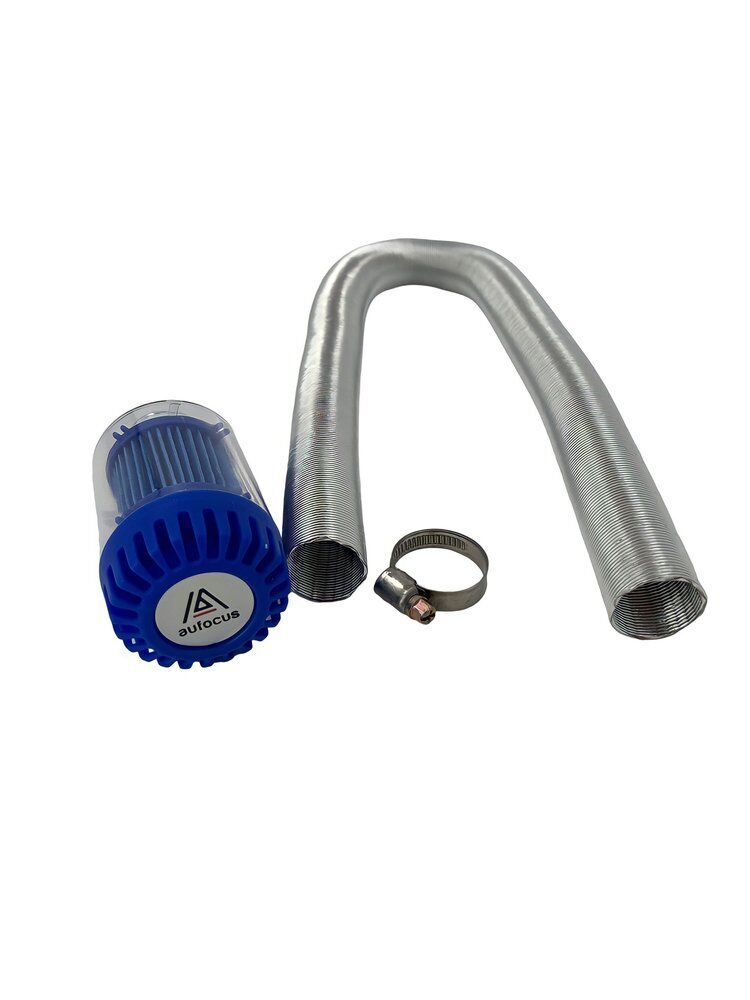

- Quality air filter
- Premium reusable fuel filter made with alloy top and base.

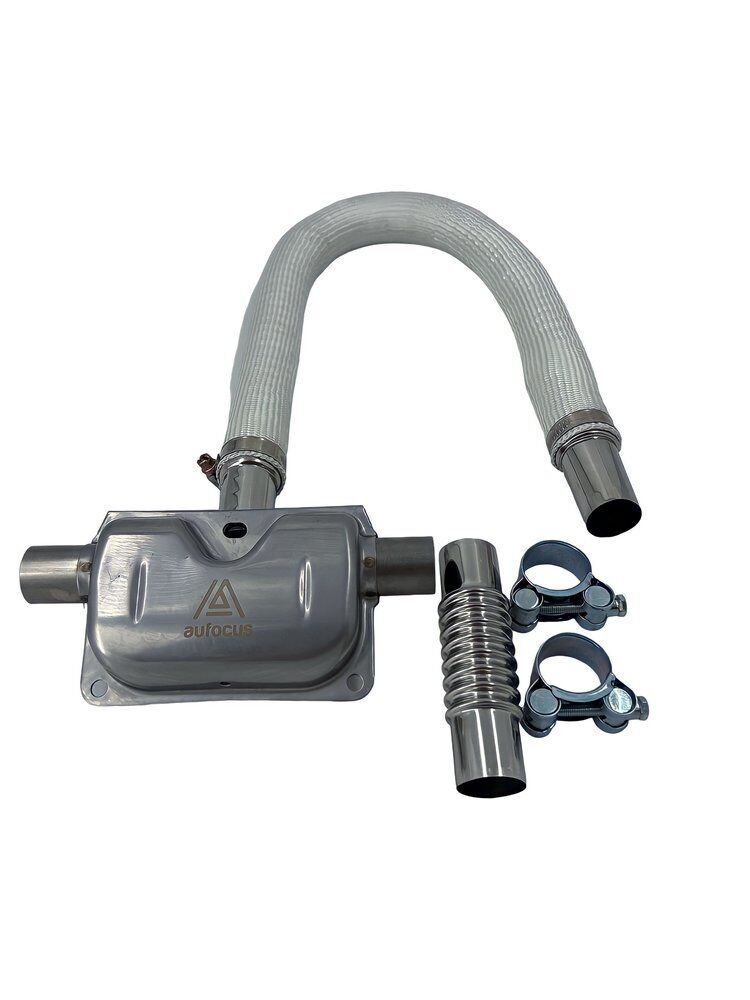

- High grade exhaust with flame retardant sleeve, heavy duty muffler and exhaust tip.

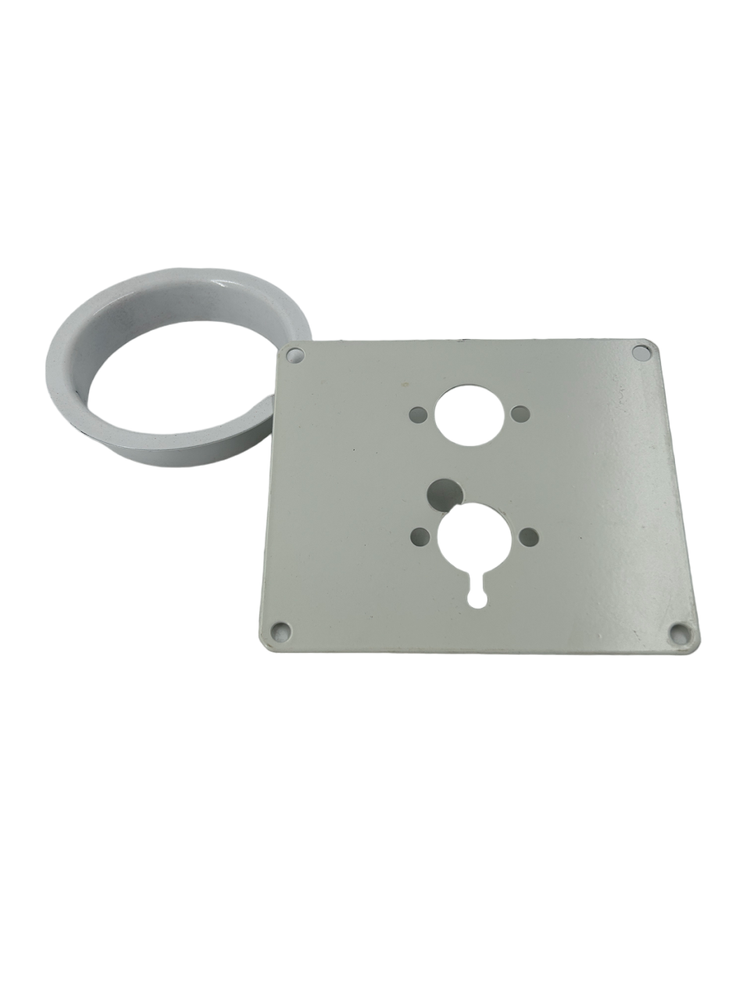

- Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
- Thicker durable plastic cable ties
- High quality clamps and other accessories required for a complete installation.
