Bonnet Mount UHF Antenna Bracket to suit Toyota Hilux N80 & Fortuner 2015-on
Back Order - Expected to ship in 2-5 business days
Need it fast? Contact us to confirm lead times.
Pickup currently unavailable.
Buy Now, Pay Later.
DETAILS
Overview
Your UHF antenna,
on the bonnet hinge.
A vehicle-specific UHF antenna bracket for the Toyota Hilux N80 2015-on and Toyota Fortuner 2015-on. It bolts to the passenger side bonnet hinge using the existing mounting points, so there’s no drilling and nothing to modify.

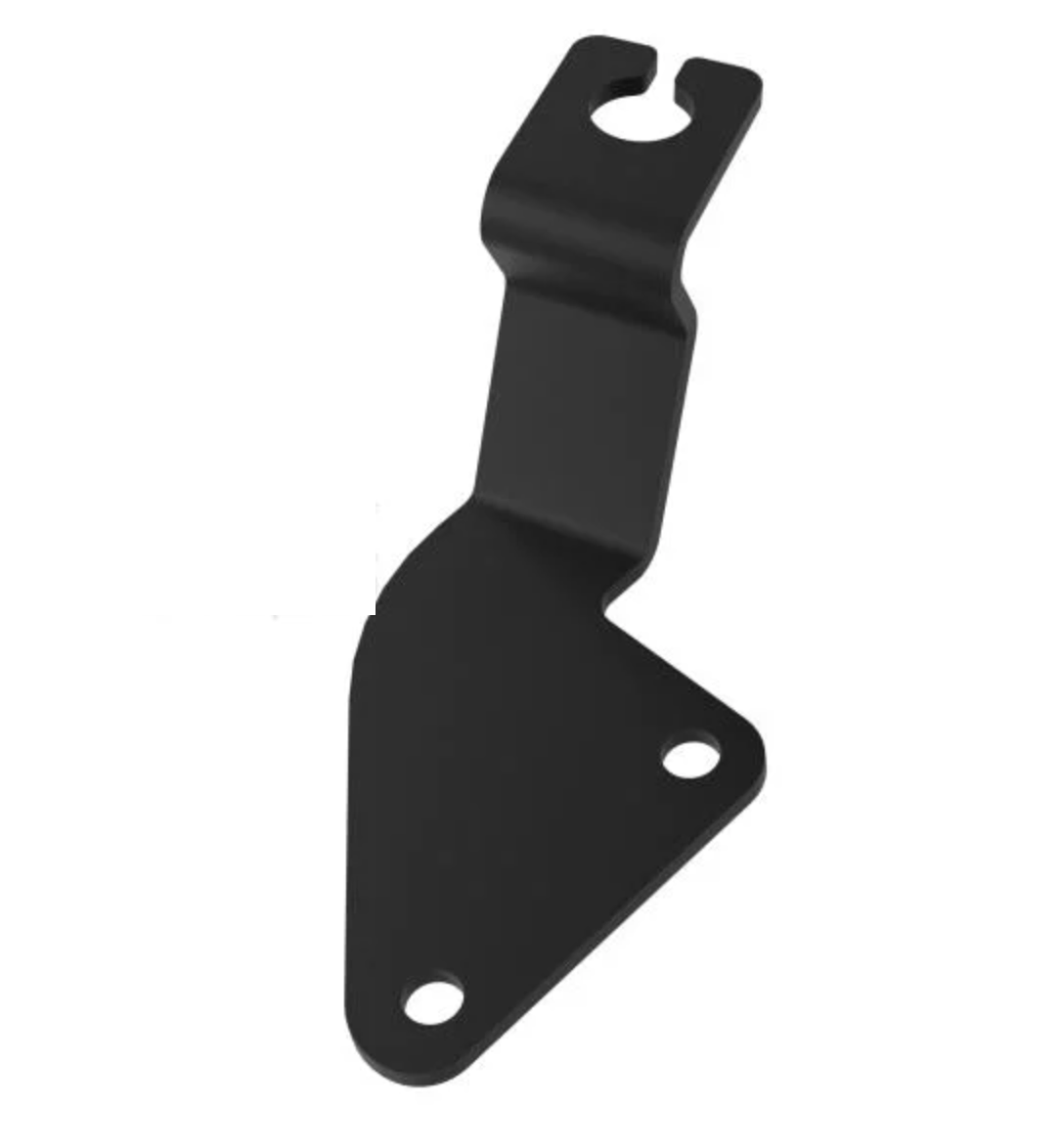

Made from a single piece of press-bent 4mm steel with a matte black powder-coated finish. The 18mm hole takes any standard UHF CB antenna, and the cable slot lets you fit or remove the antenna without cutting the cable.
Where it mounts
Made for the Toyota Hilux N80 & Fortuner 2015-on
The bracket picks up the existing bolts on the passenger side bonnet hinge. It’s shaped so the bonnet still opens and closes normally and the wipers aren’t blocked.
- ✓Bolts to the passenger side bonnet hinge
- ✓Uses the existing mounting points, no drilling
- ✓Bonnet opens and closes as normal
- ✓Clear of the window wipers
Compatibility
- ✓Toyota Hilux N80 2015-on
- ✓Toyota Fortuner 2015-on
Not suitable for:
- ✕Toyota Hilux N70 2005-2015: use APVCBB14
Tech specs
| Suits | Toyota Hilux N80 2015-on Toyota Fortuner 2015-on |
| Mounting position | Passenger side bonnet hinge |
| Material | 4mm press-bent steel |
| Finish | Matte black powder coat |
| Antenna mounting hole | 18mm |
| Cable slot | 5mm |
| Brand | Aerpro |
| Part number | APVCBB4 |
What’s included
- ✓1 x Aerpro APVCBB4 bonnet mount UHF antenna bracket
Antenna, antenna base and coax cable are not included. The bracket fits with your vehicle’s existing bolts.
Simple installation
Undo the existing bolts at the passenger side bonnet hinge, sit the bracket in place and refit the bolts firmly.
Fit your UHF antenna base through the 18mm hole and tighten it down.
Slide the coax through the 5mm cable slot and route it into the cabin to your radio.
Goes well with
3.0 dBi heavy duty raydome, short enough for tracks and car parks.
3.0 dBi in a compact 612mm length.
Smart UHF CB radio with Bluetooth, packed with the ATX970S antenna.
Frequently asked questions
Will it fit my antenna?
Yes. The 18mm hole suits standard UHF CB antenna bases from any brand, including Uniden and GME.
Do I need to drill anything?
No. It uses the existing mounting points on the vehicle.
Will it stop the bonnet opening?
No. It’s designed so the bonnet and wipers work as normal.
Can it go on the driver side?
No. Each bracket is shaped for the passenger side hinge of the vehicles listed.
Is an antenna included?
No. This is the bracket only. Choose an antenna and coax to suit.
Not sure what you need?
Tell us your vehicle, model year and antenna and we will check the right bracket with you before you buy.
Contact our teamFeatures
- ✓Vehicle-specific fit for the Toyota Hilux N80 & Fortuner 2015-on
- ✓Passenger side bonnet hinge, uses the existing mounting points
- ✓Single piece of press-bent 4mm steel
- ✓Matte black powder-coated finish
- ✓18mm hole suits all standard UHF CB antennas
- ✓Cable slot to fit or remove the antenna easily
Product Details
| SKU | APVCBB4 |
| Barcode # | 9317114943262 |
| Brand | Aerpro |
| Shipping Weight | 0.2000kg |
