DETAILS

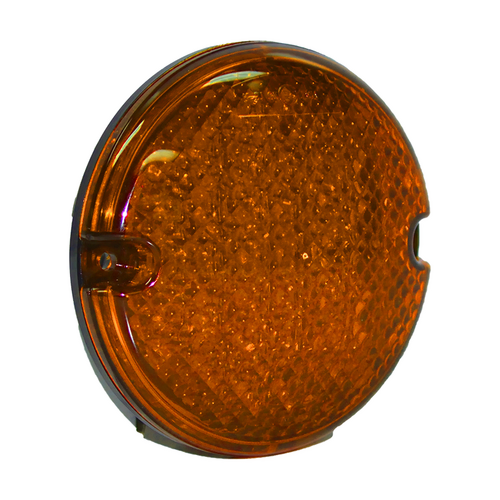

600 Series LED Rear Flasher Lamp(24V)

The 95 series LED modules feature a crystal optics lens design and a common dimensional profile enabling the lamp to suit a wide variety of applications. This lamp can be used with modupods to create a custom combination solution or individually as a flush mount with a surface mount option using the single modupod plinth. The dimensions of the 95 series also allow for retrofit upgrade or replacement of similar lamps. Suited to OE and heavy-duty applications. Connector options are also available.

SPECIFICATIONS:

Applications Trucks Rigid Bodies Bus & Coach Custom Builds
Functions Stop / Rear Position / Rear Direction Indicator / Reverse
Voltage 12V or 24V options
Wattage Stop:4.92W@12V

Rear Position:2.92W@12V

Rear Direction Indicator:4.92W@12V
Mounting Surface mount or Modupod
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M / 9M Optional
Dimensions 95x40mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
Homologation Certification

ECE (Emark)
