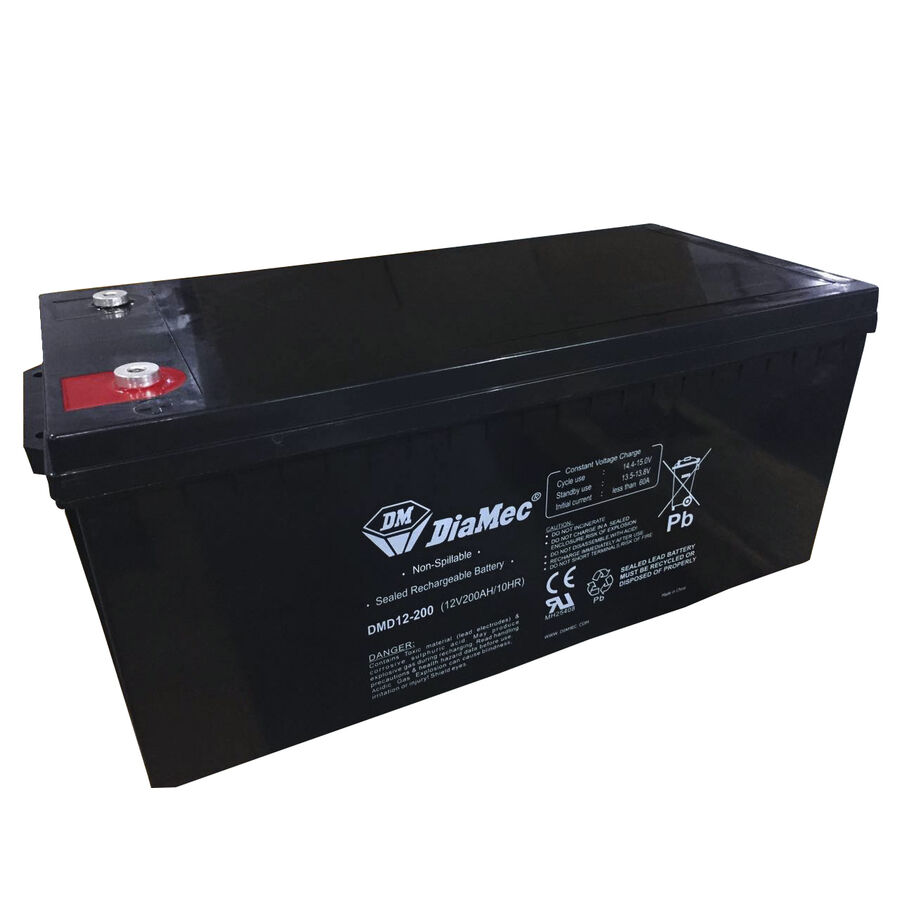

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge.
Rechargeable Battery
Recharging Time 8hr
Leakage Properties 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months
Recharging Voltage 14.4V-15V
Standard Recharge Current 25A
DC Voltage Rating
DC Voltage 12V
Product Dimensions
Width 239mm
Height 217mm
Weight 59.2kg
Length 523mm
Battery Packs and Batteries
Battery Peak Current 3000A
20 Hour Capacity 204Ah
Battery Chemical Composition Deep Cycle AGM
Battery usage Bulk Storage
Amp Hour Rating 200mAh
Type of battery SLA Block
Connection Type M8 Bolt/Nut
10 Hour Capacity 200Ah
5 Hour Capacity 160Ah
1 Hour Capacity 126Ah
