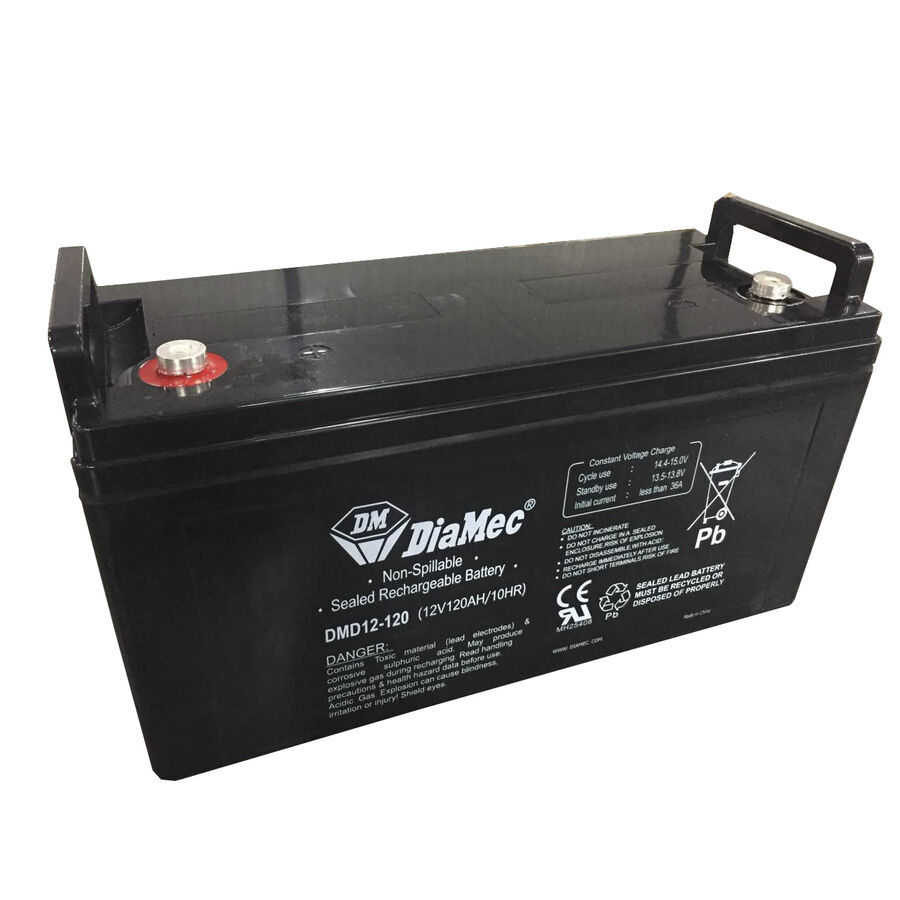

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge.

 - Capacity: 120Ah
 - Dimensions: 406(L) x 173(W) x 233(H)mm
 - Weight: 37.8kg
Rechargeable Battery
Recharging Time 8hr
Leakage Properties 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months
Recharging Voltage 14.4V
Standard Recharge Current 15A
DC Voltage Rating
DC Voltage 12V
Product Dimensions
Width 173mm
Height 233mm
Weight 28.4kg
Dimension details Including Handles
Length 406mm
Battery Packs and Batteries
Battery Peak Current 1800A
20 Hour Capacity 123Ah
Battery Chemical Composition Deep Cycle AGM
Battery usage Bulk Storage
Amp Hour Rating 120Ah
Type of battery SLA Block
Connection Type M8 Bolt/Nut
10 Hour Capacity 120Ah
5 Hour Capacity 96Ah
1 Hour Capacity 75Ah
