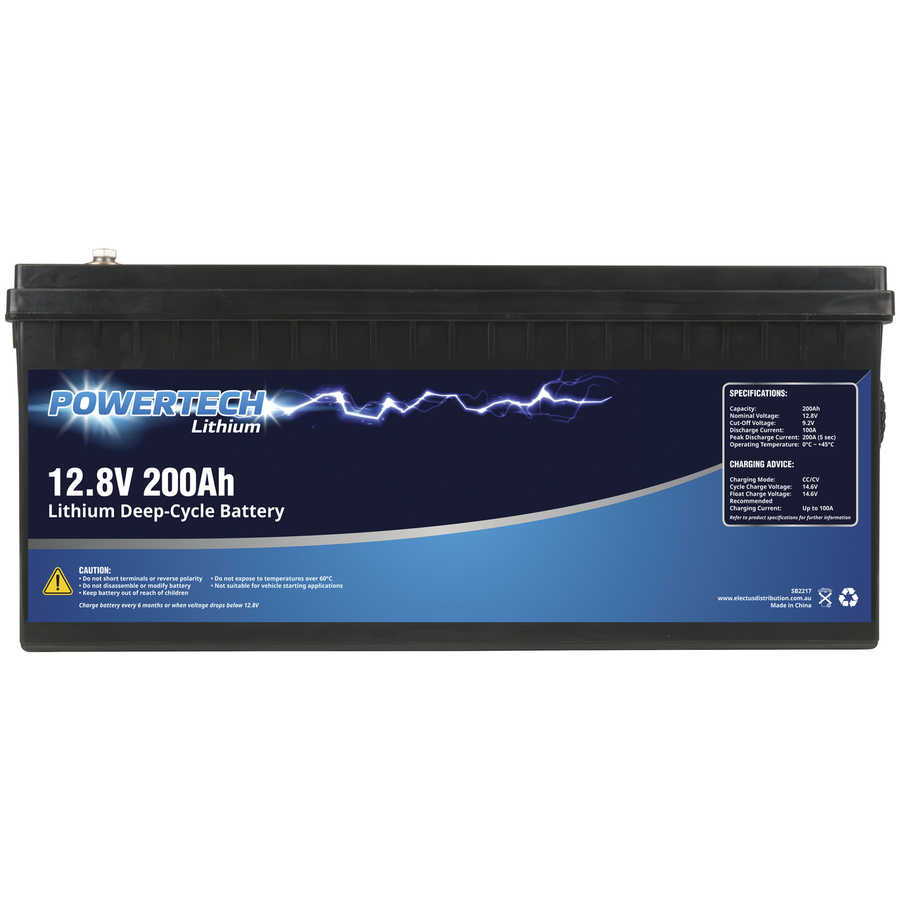

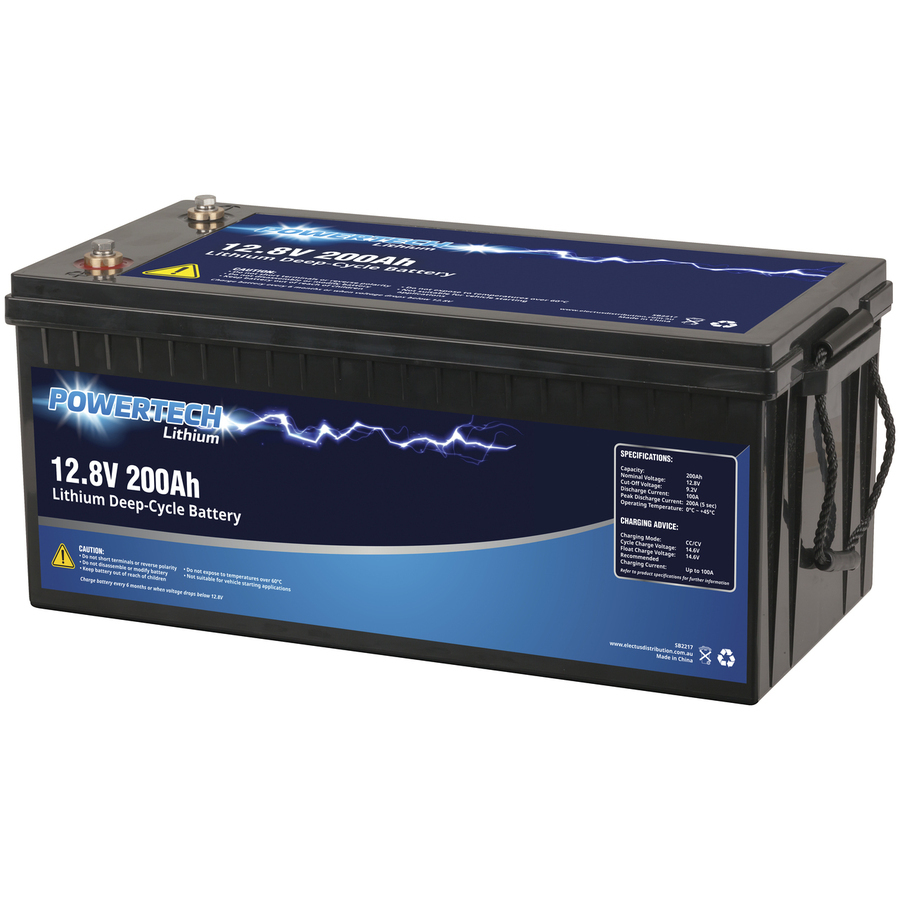

12.8V 200Ah Lithium Deep Cycle Battery

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of prismatic LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 200Ah model can provide continuous current up to 50A with peaks of 150A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery.





Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ year life span
- 1500+ cycles

Specifications:
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Normal Current: 50A (150A 5min Max)
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%



Battery Packs and Batteries
Battery Chemical Composition Lithium Ferrous Phosphate (LiFePO4)
Amp Hour Rating 200mAh
20 Hour Capacity 200Ah



DC Voltage Rating
DC Voltage 12.8V
Product Dimensions
Height 220mm
Weight 20kg
Length 520mm
Width 240mm
Classified as dangerous goods
DG UN Number 3480
DG Pack Group II - Medium Danger
DG Hazardous Chemical Code 4W
DG Ship Name 3480 - Lithium Ion Batteries
Battery Watt Hour Rating (Required for Lithium Batteries) 2560Wh
